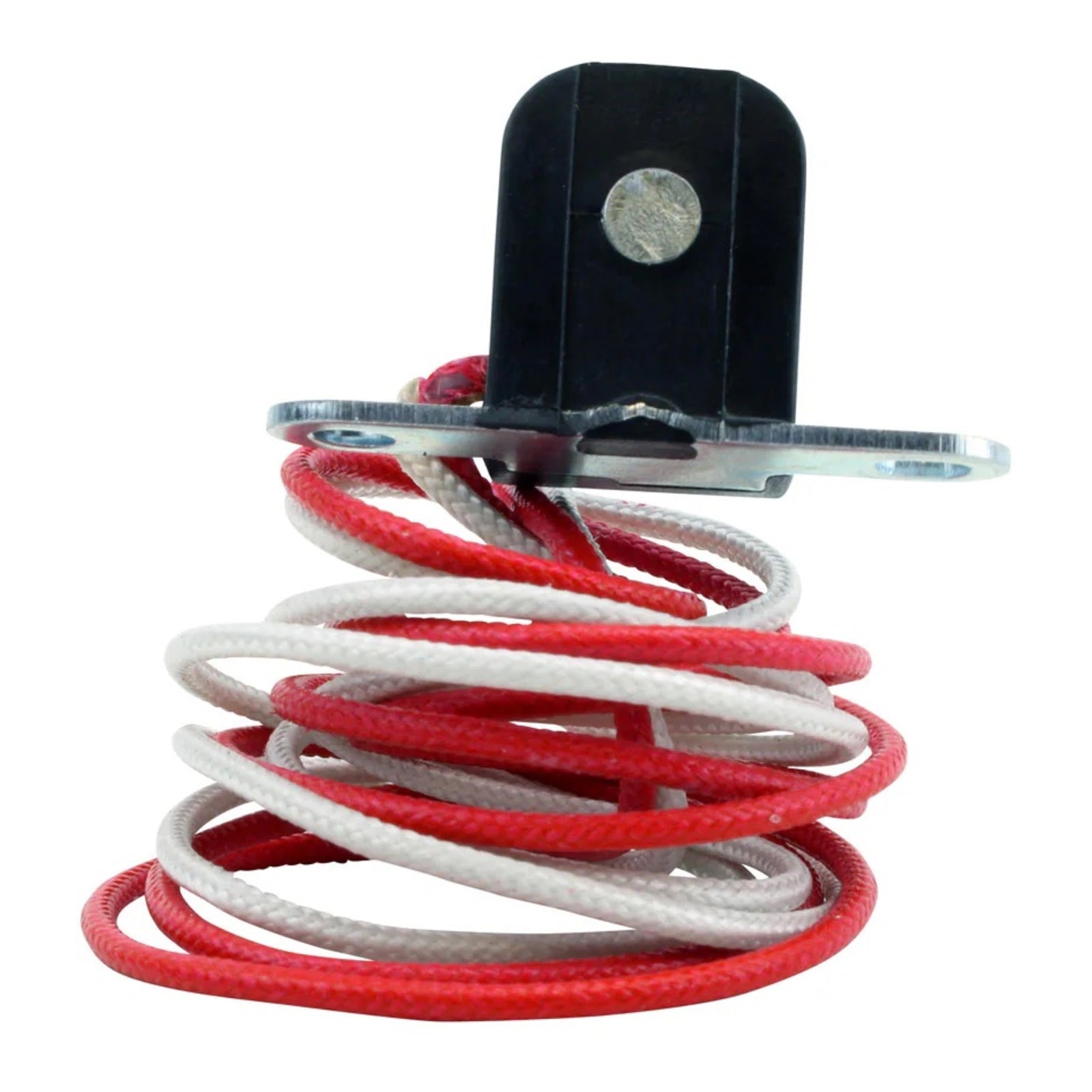

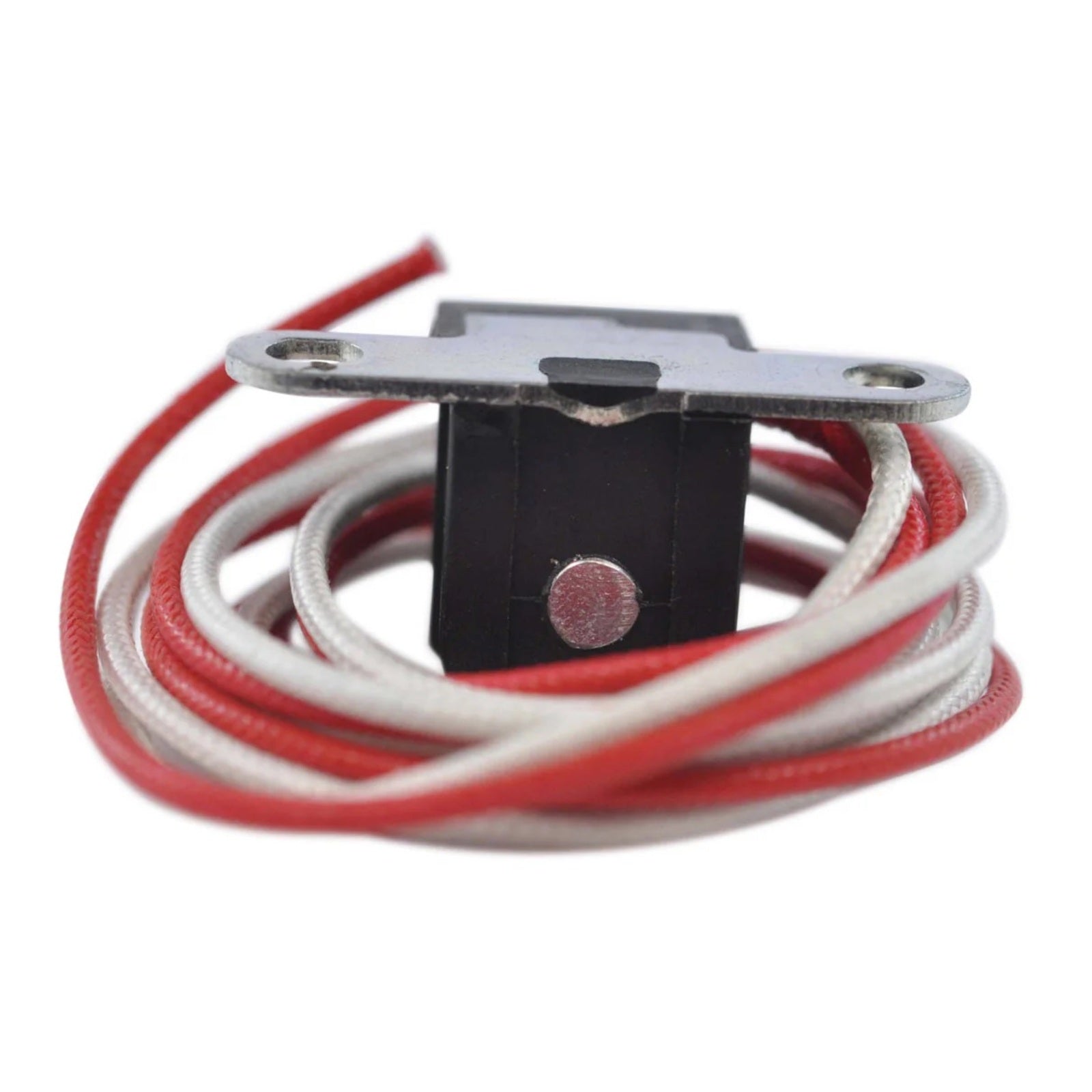

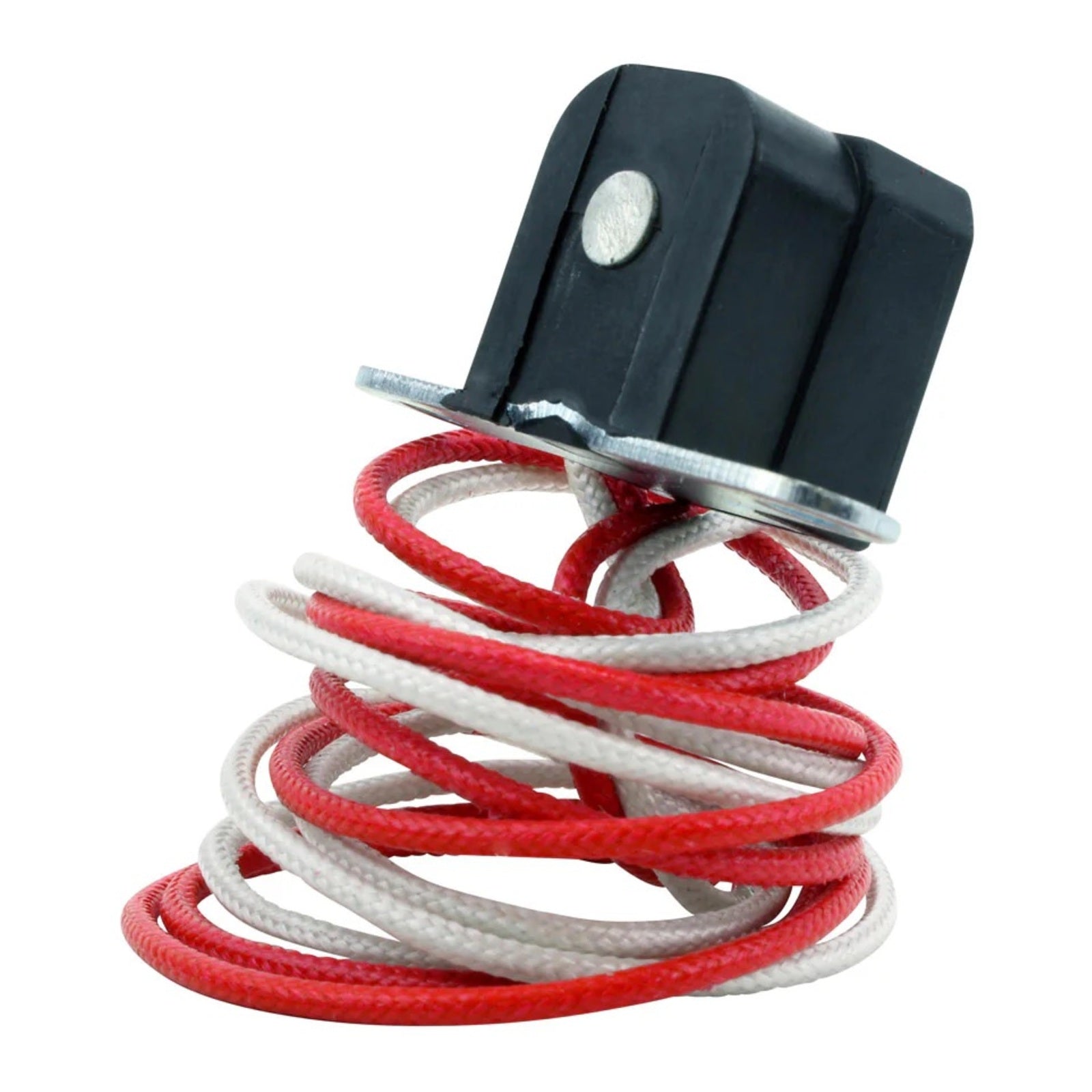

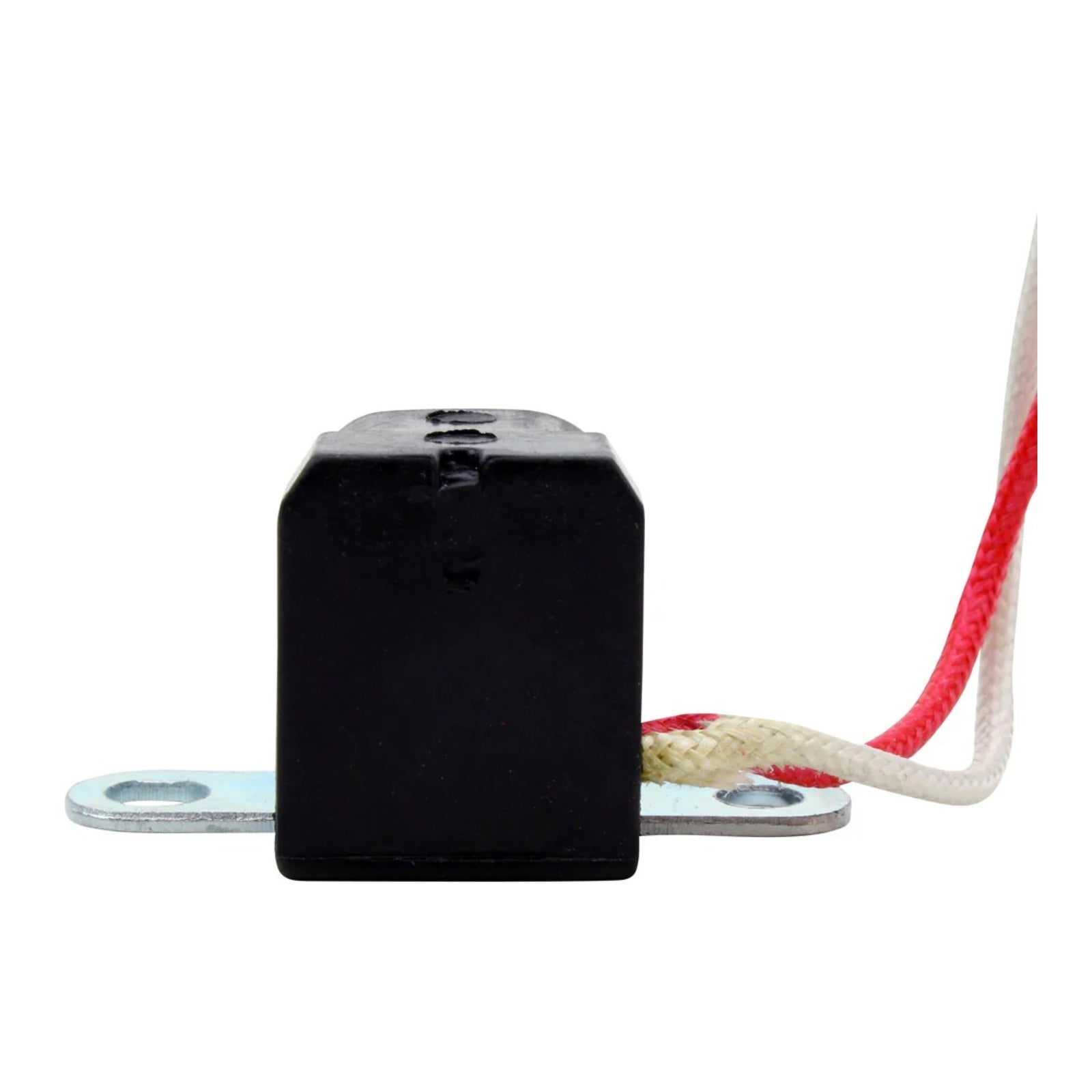

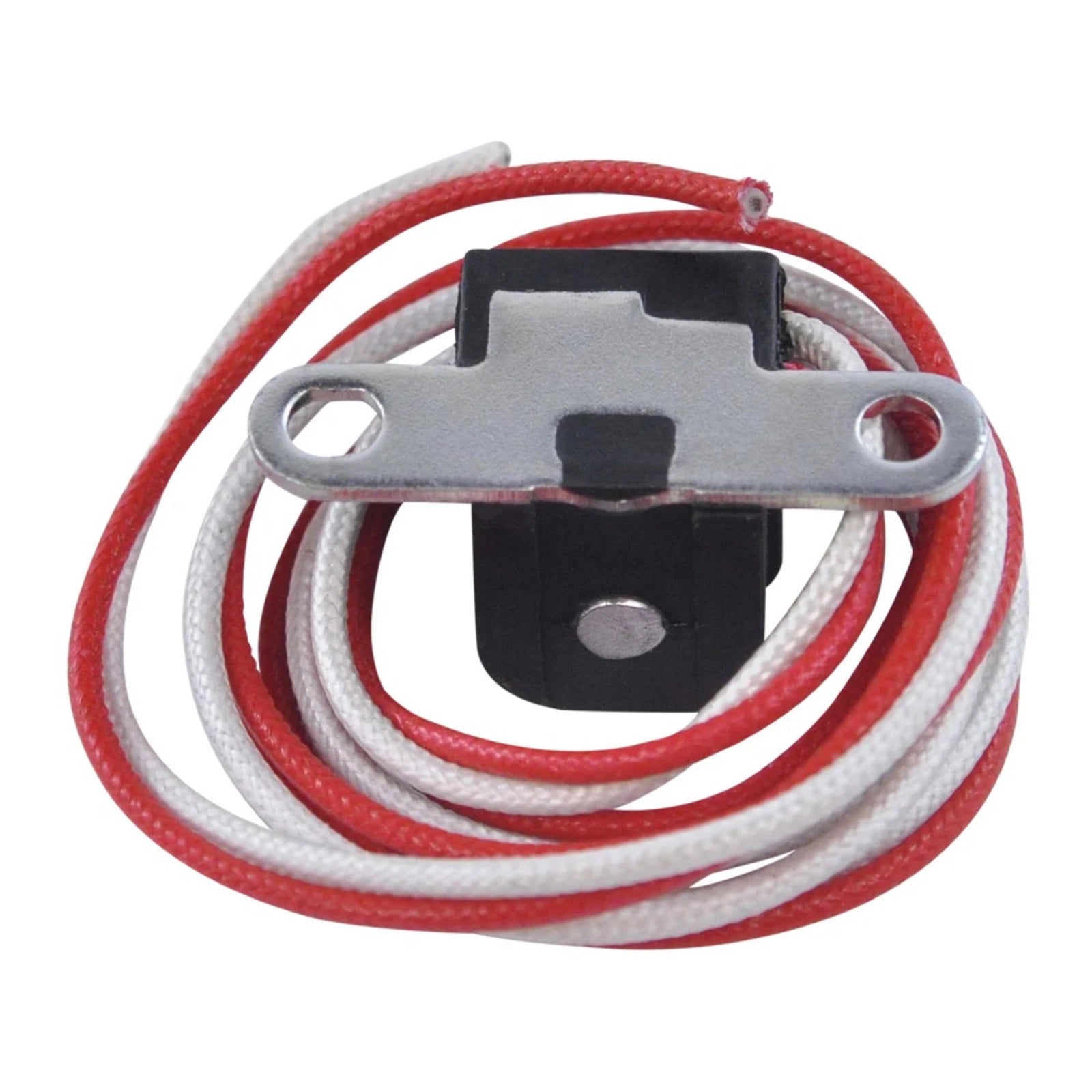

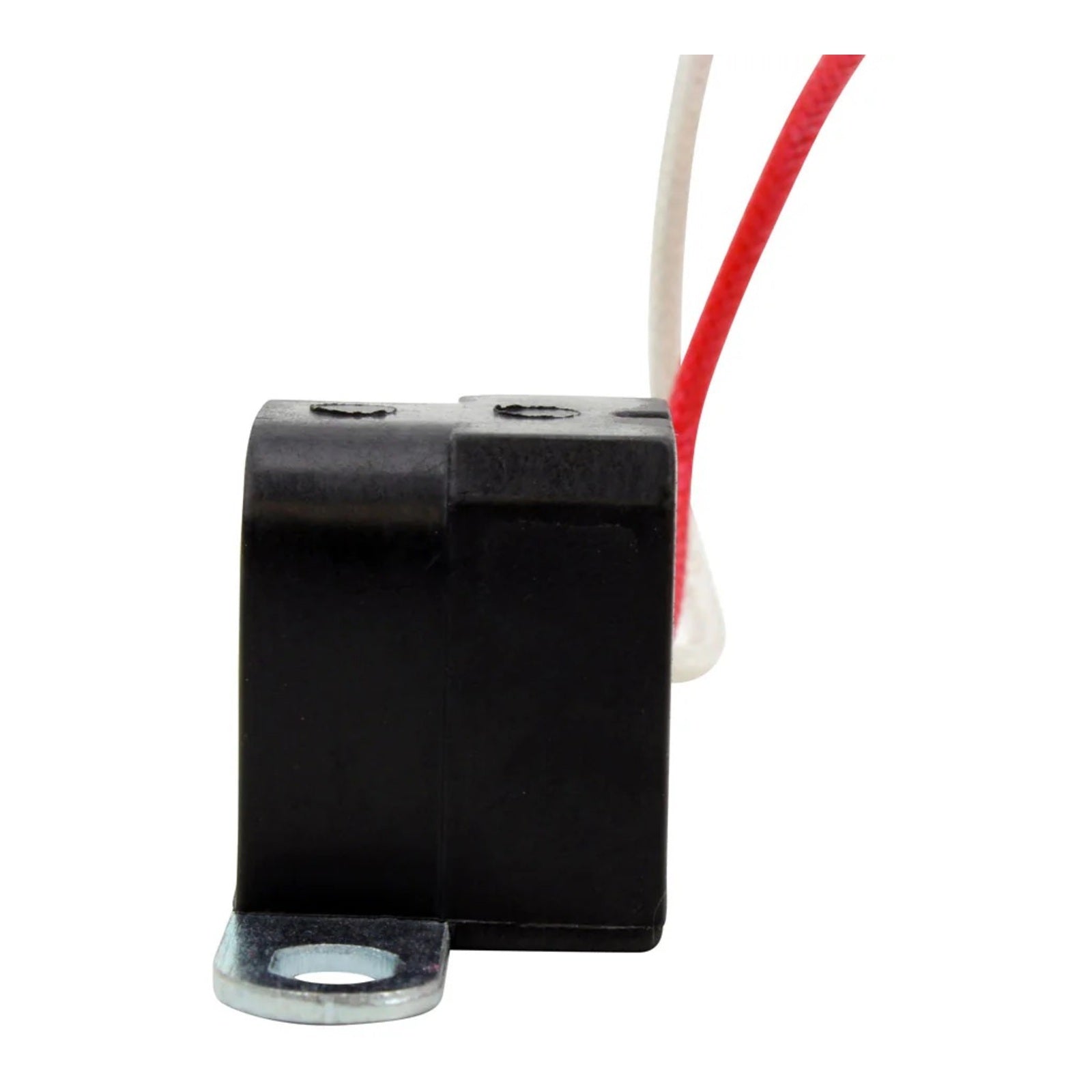

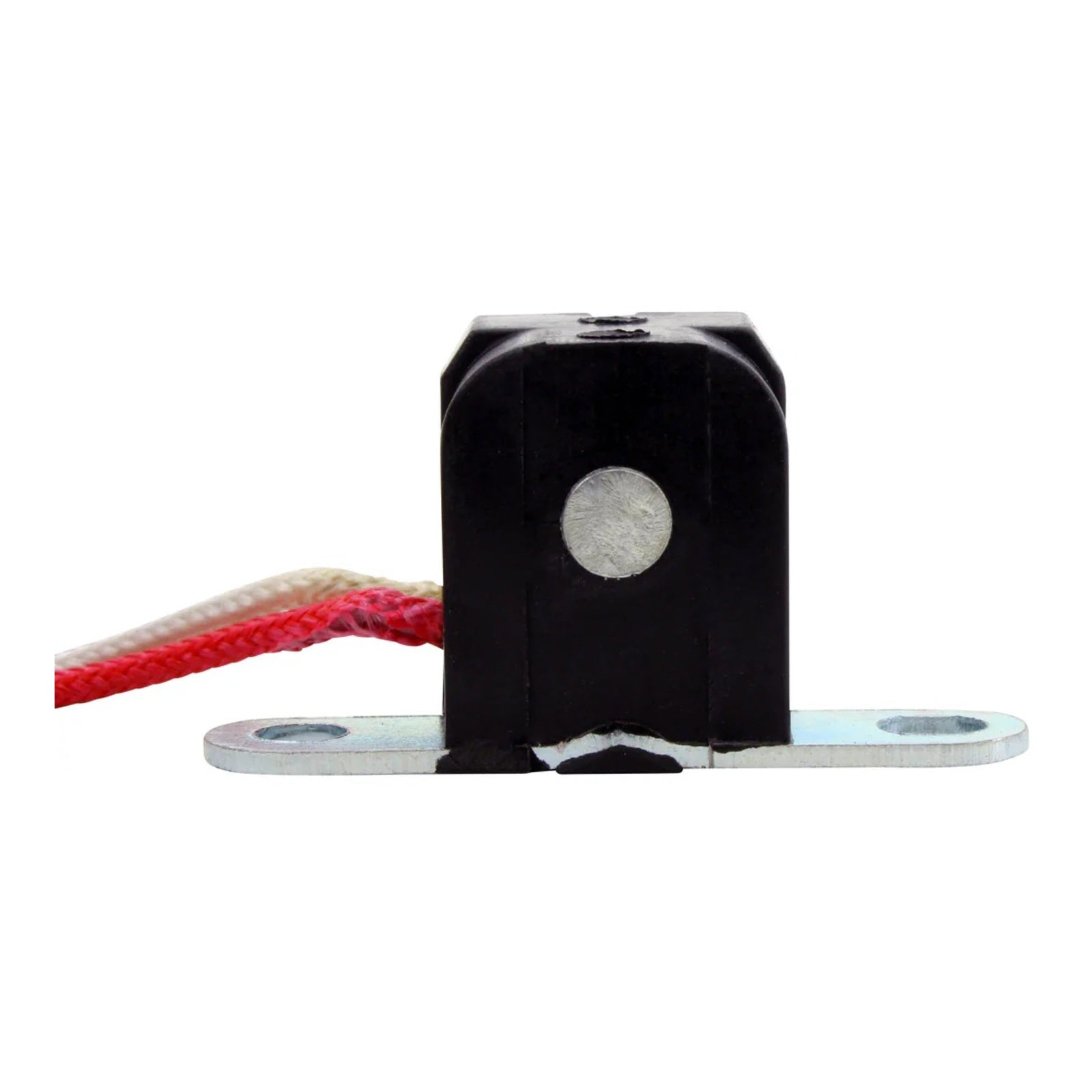

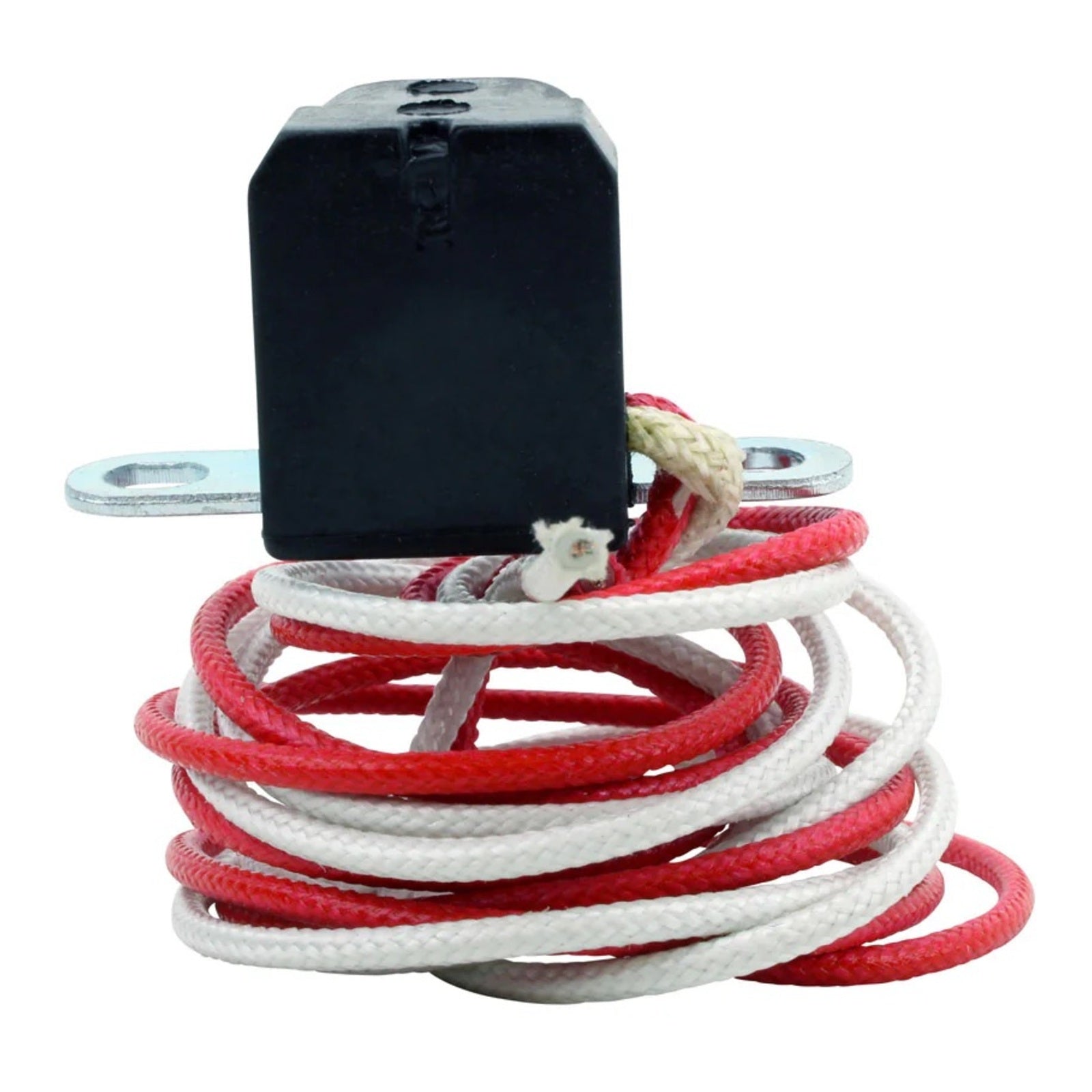

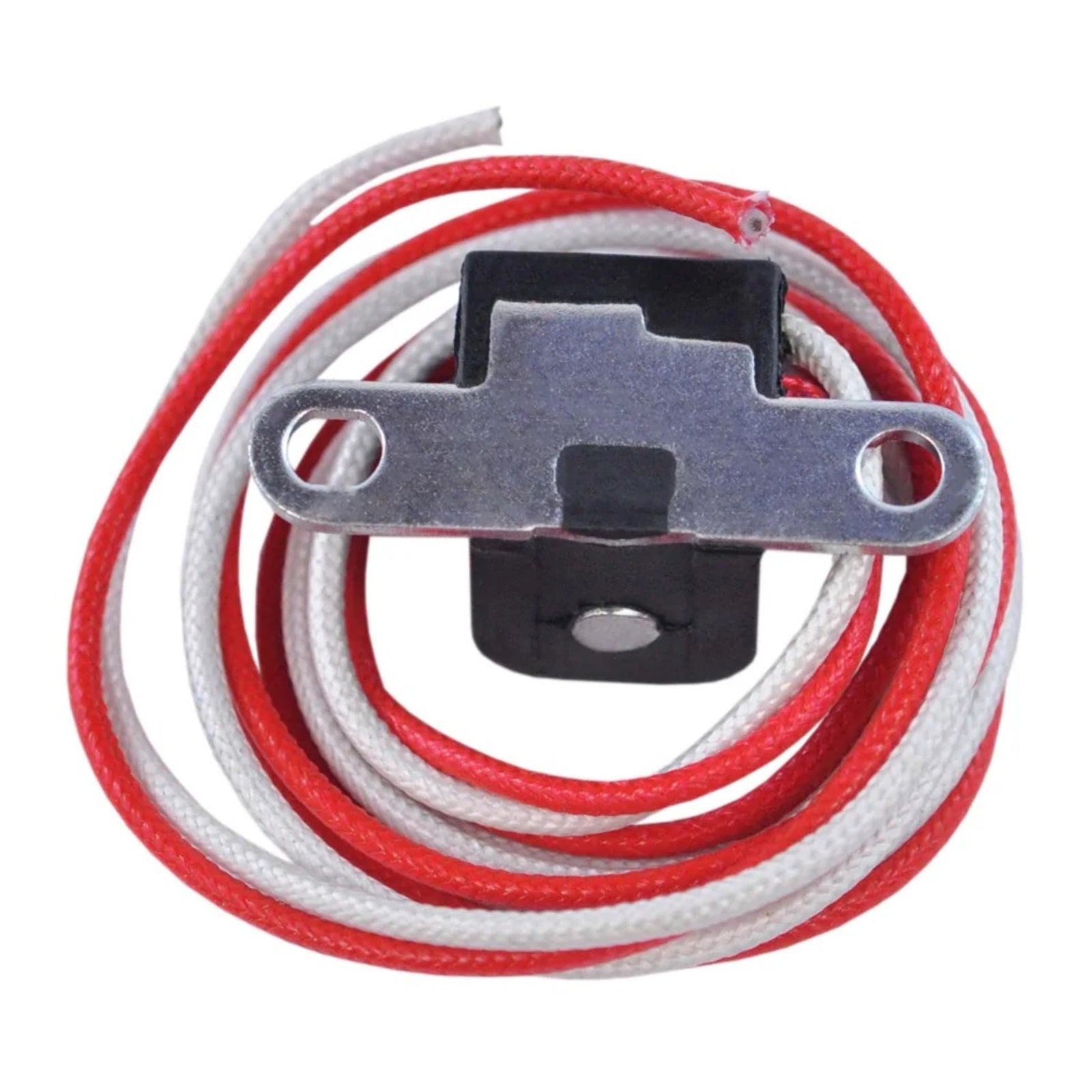

Stator Pickup Pulsar Coil for Can-Am / Kawasaki / Yamaha / Suzuki Models

Brand new pick up coil 500 ohms.

  • Often unavailable from the OEM manufacturer.
  • All products shipped are tested.

Technical Data

Dimensions:

  • Height: 23mm
  • Length: 19mm
  • Width: 19mm

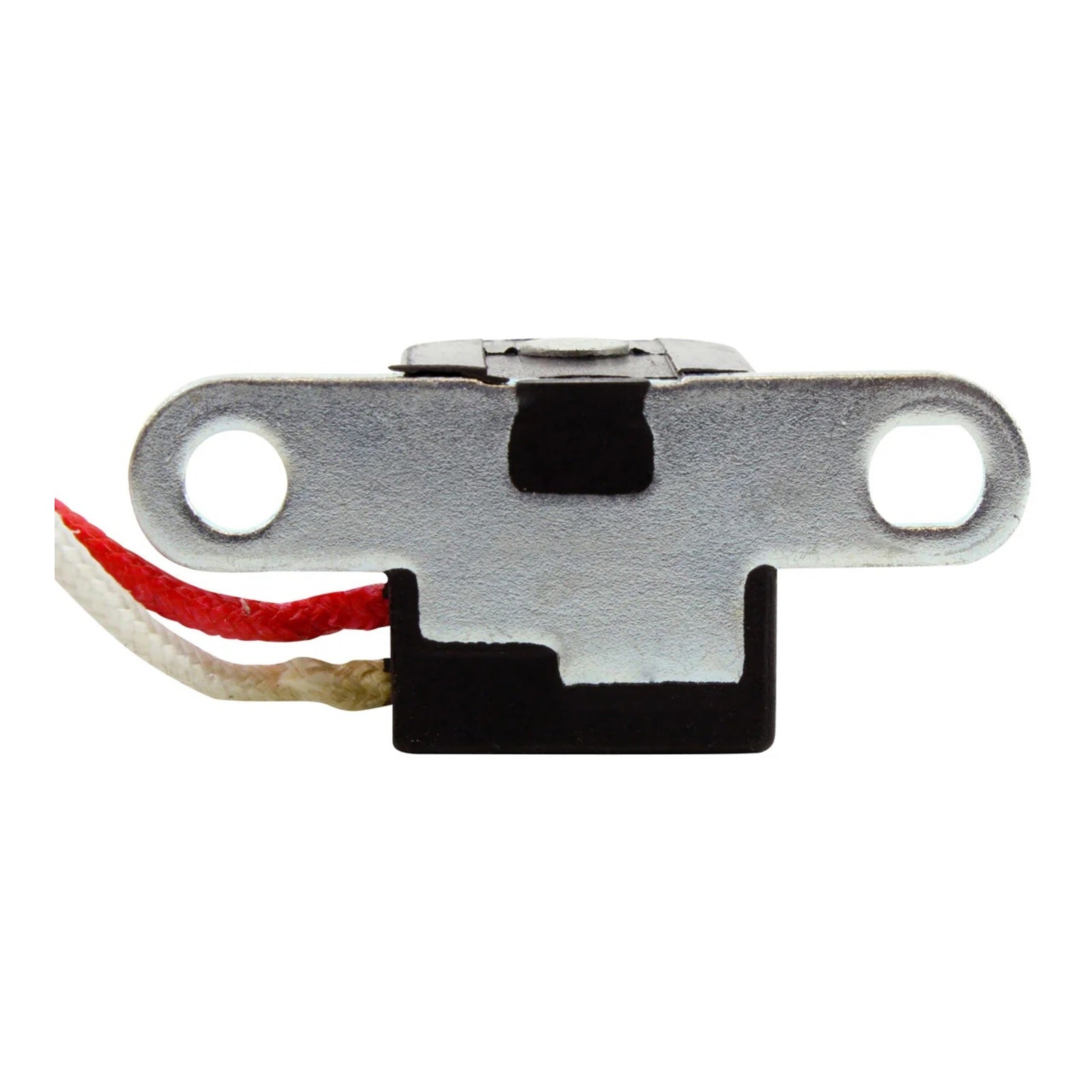

  • Bracket centre to centre: 35mm
  • Wires length: 800mm

Other specifications:

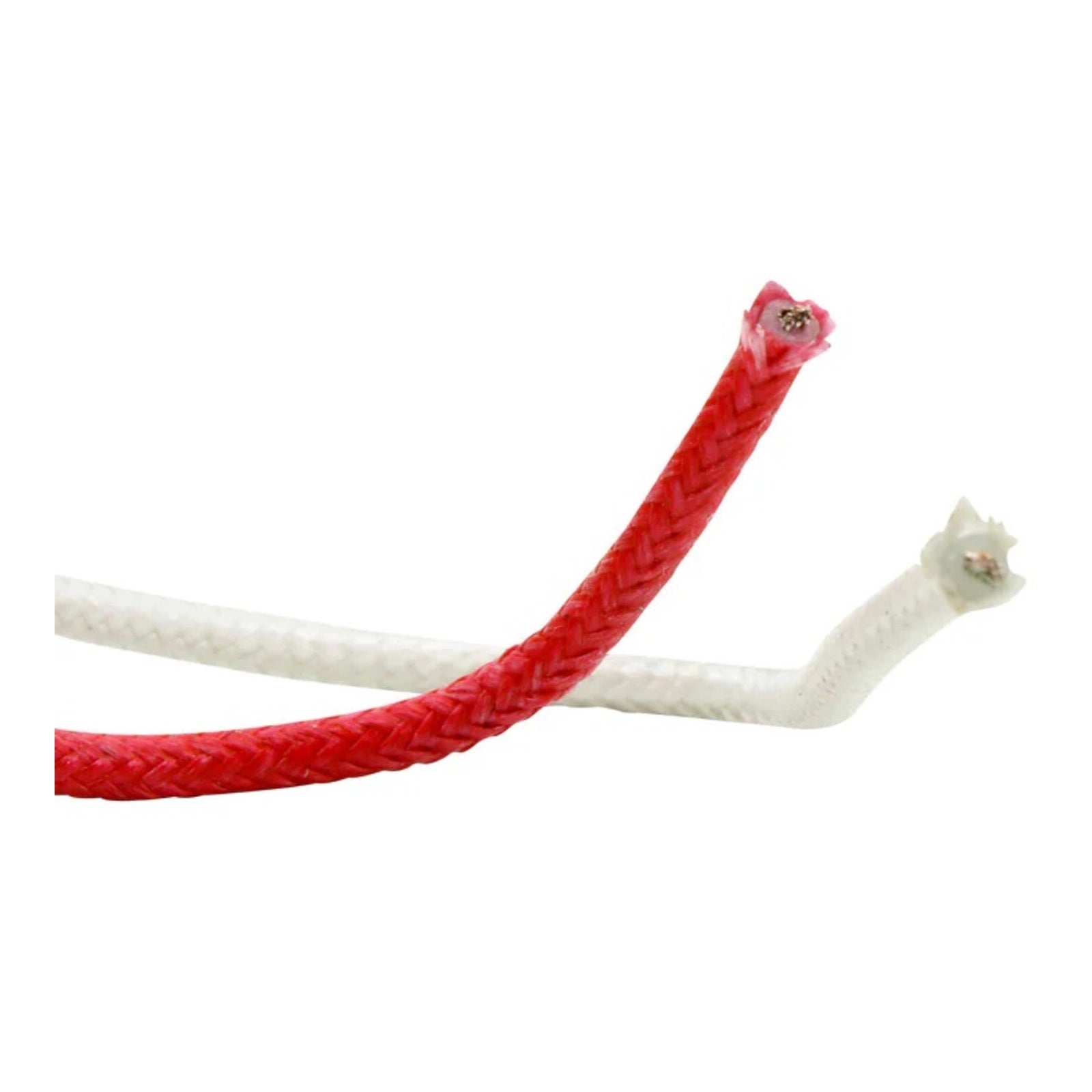

  • Number of wires: 2
  • Number of terminals: 2
  • Wire-to-wire resistance:
  • Red to white = 500 ohms+/-20%
