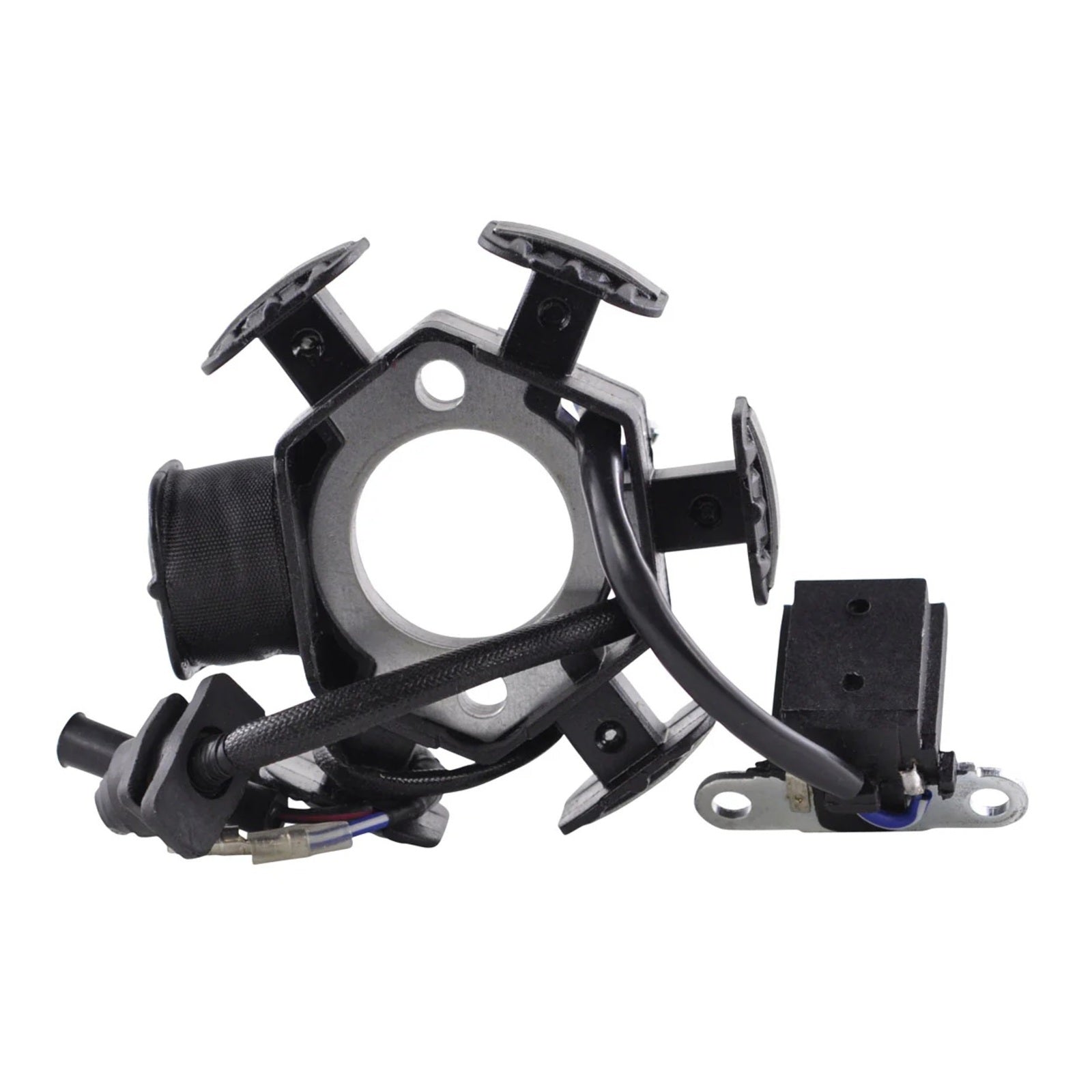

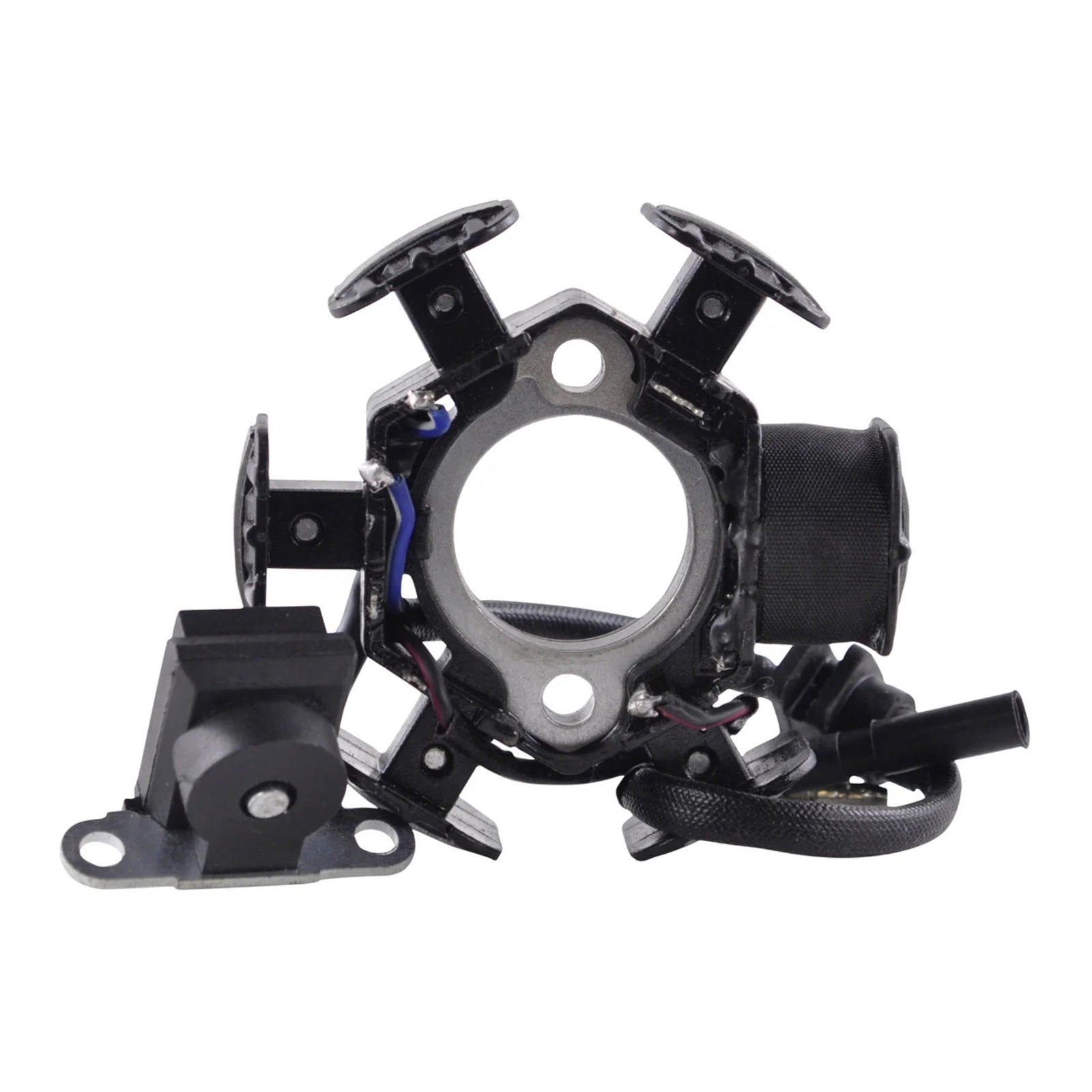

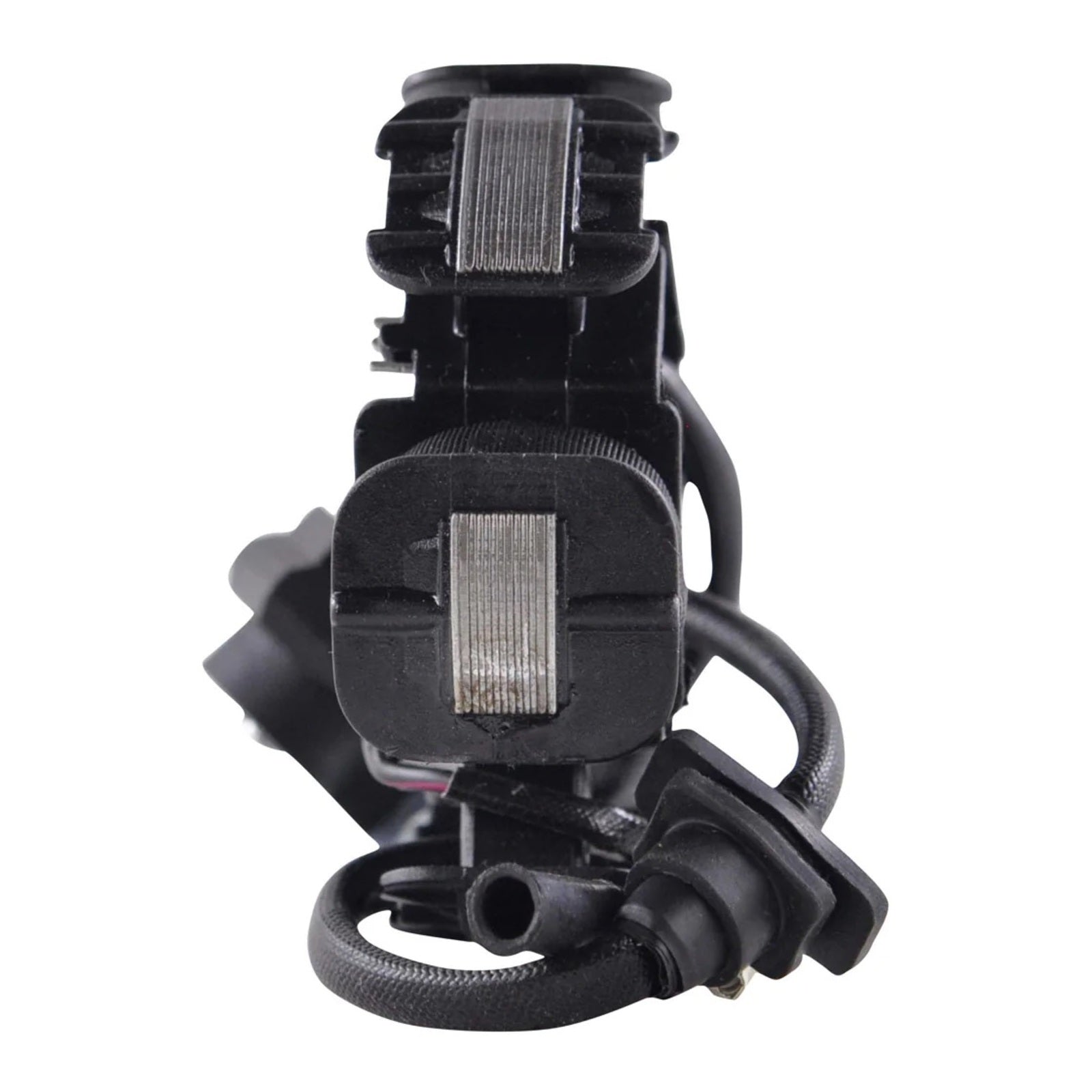

Stator for Honda CRF50F / XR50R / Z50R / XR70R '88 - '24

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.

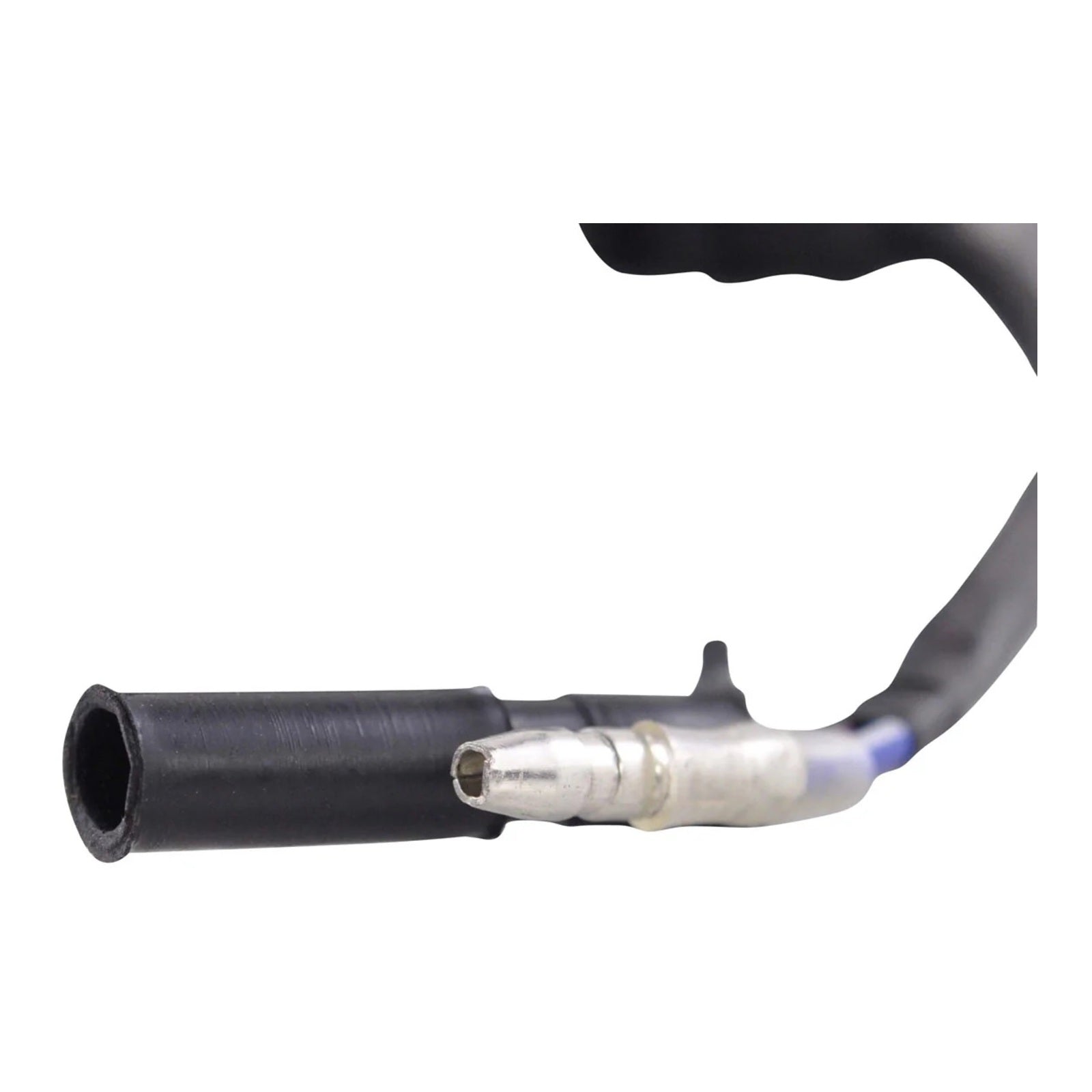

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Technical Data

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 83 mm
  • Thickness: 9 mm
  • Length of wires stator to grommet: 40 mm
  • Length of wires grommet to plug: 130 mm
  • Length of pickup coil's wire to grommet: 60 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 2
  • Number of pins: 2

Wire-to-wire resistance:

  • Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
  • Source: Black/Red to Ground = 715 ohms +-20%
