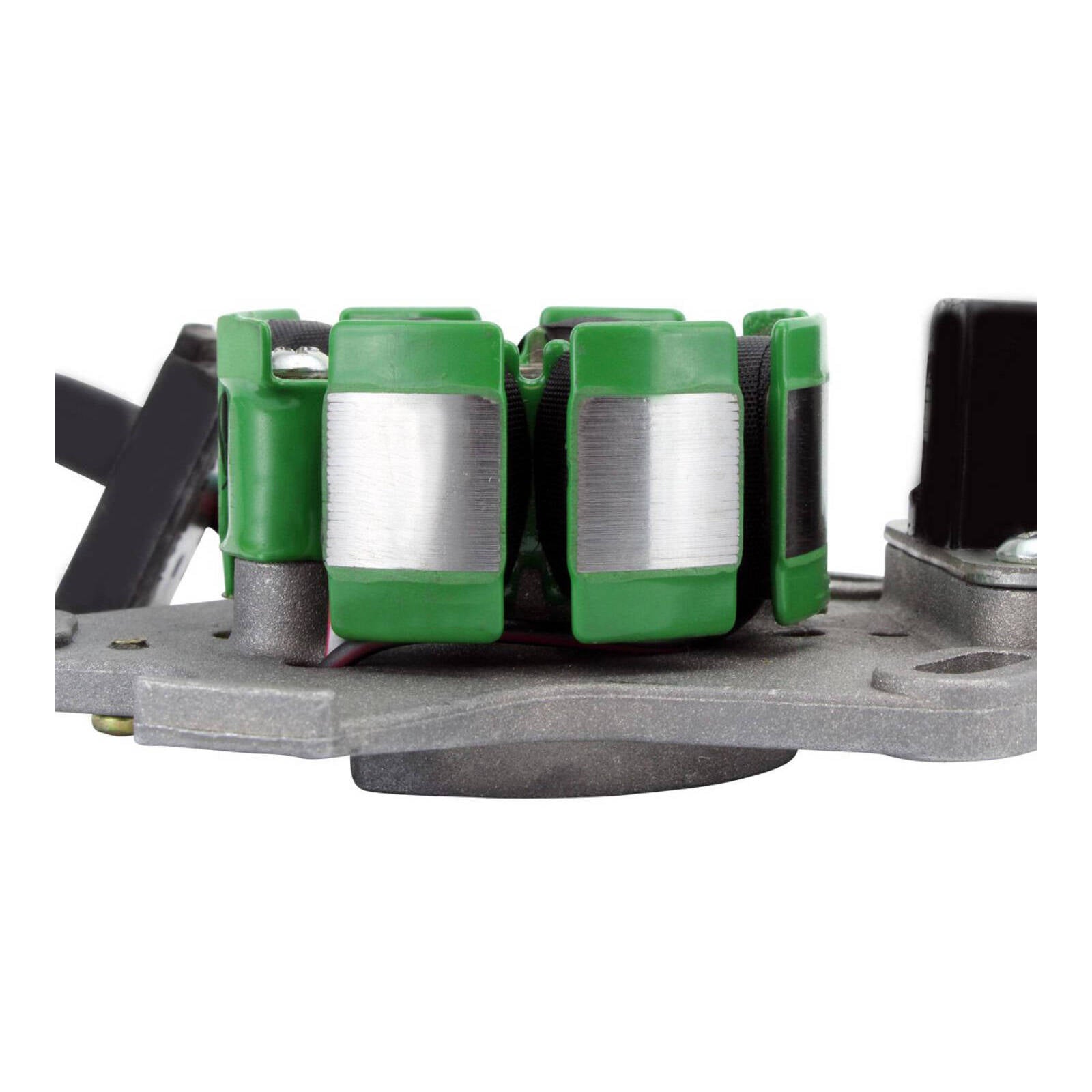

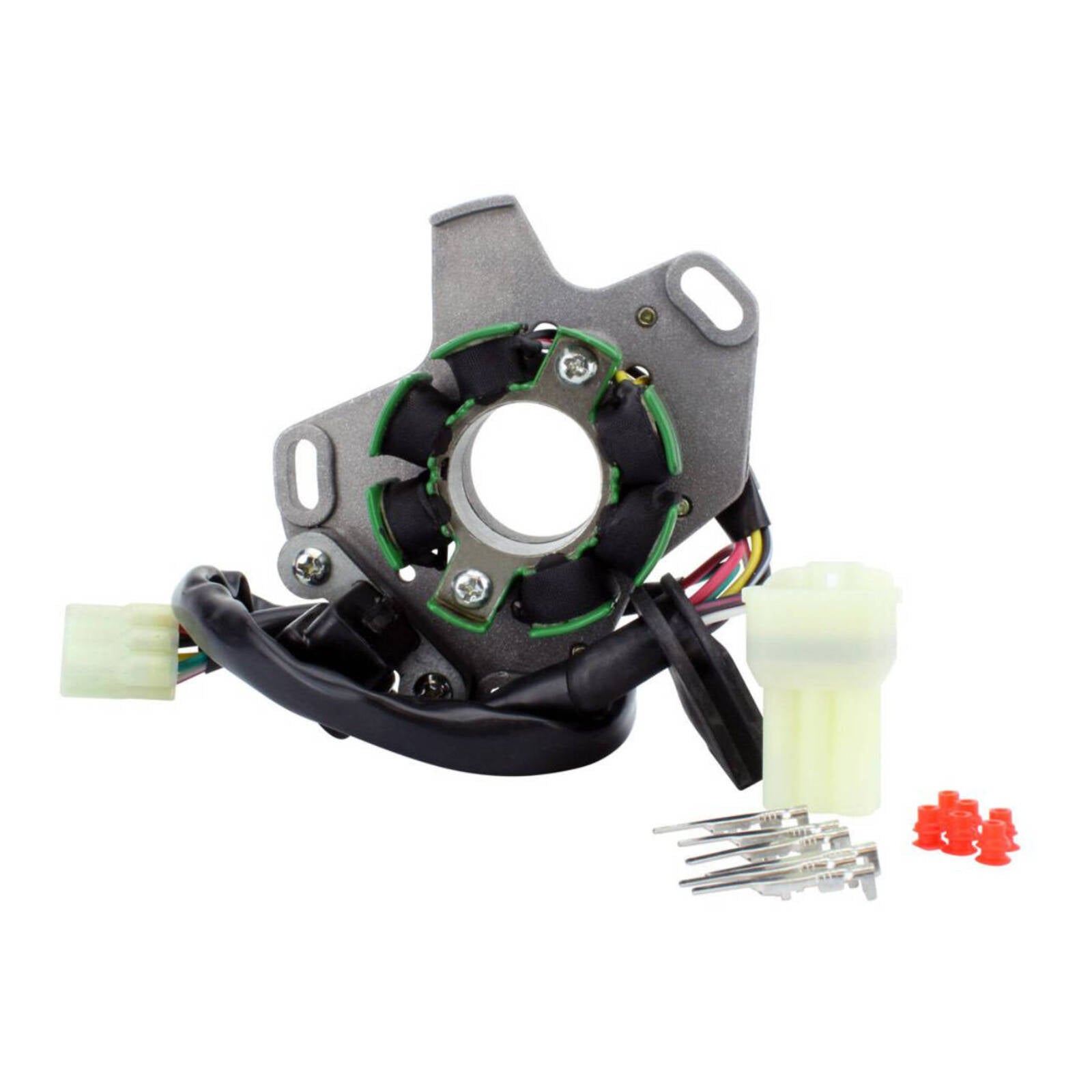

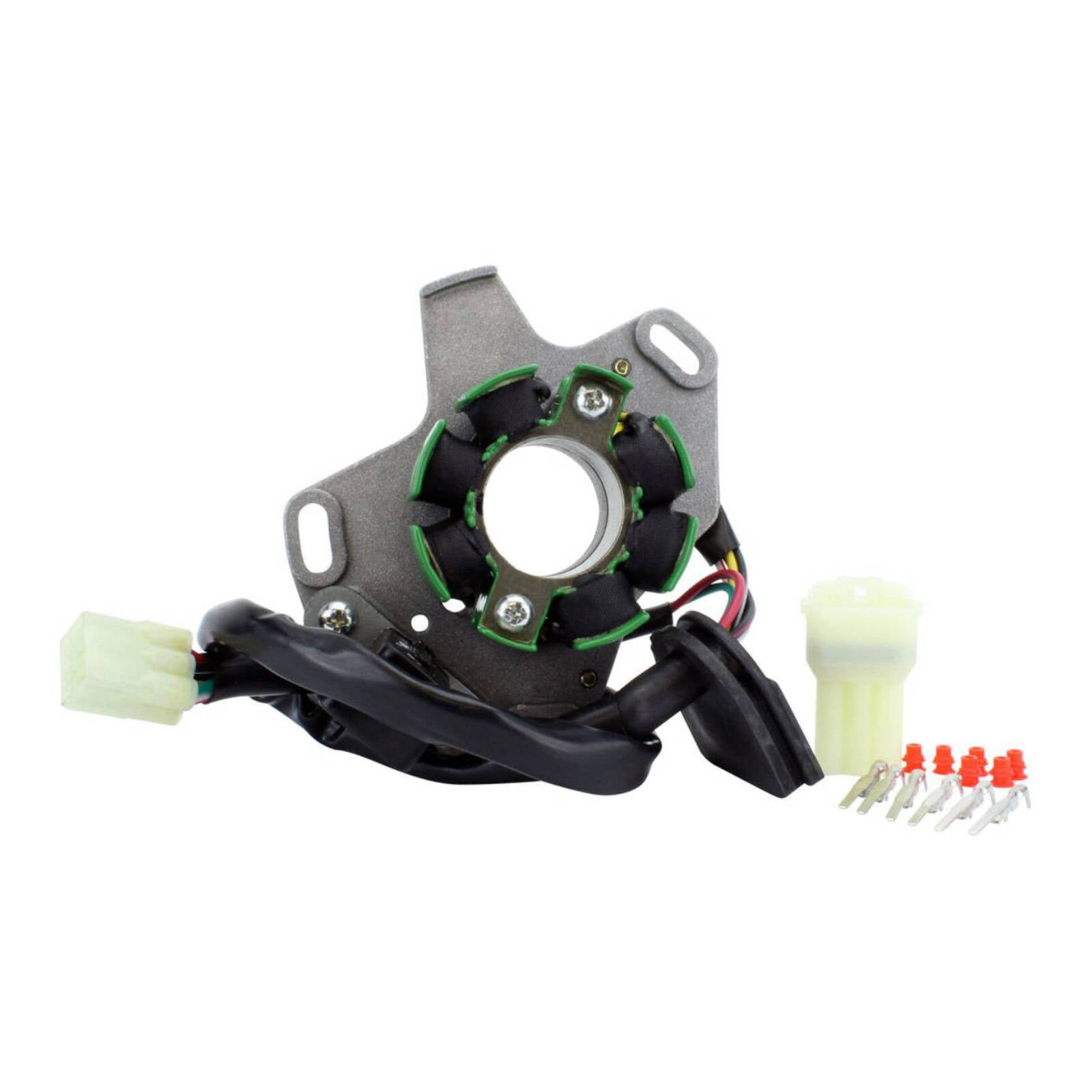

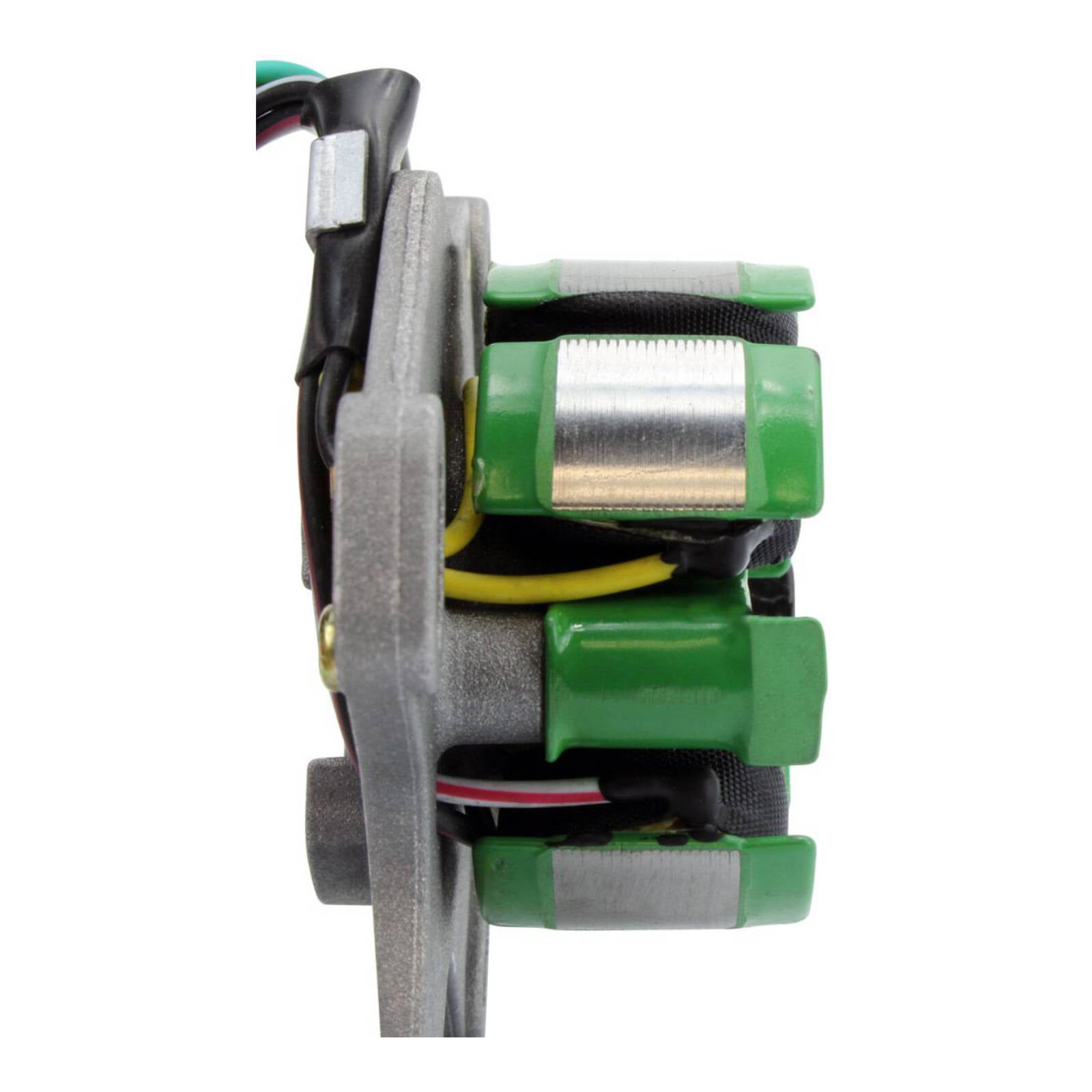

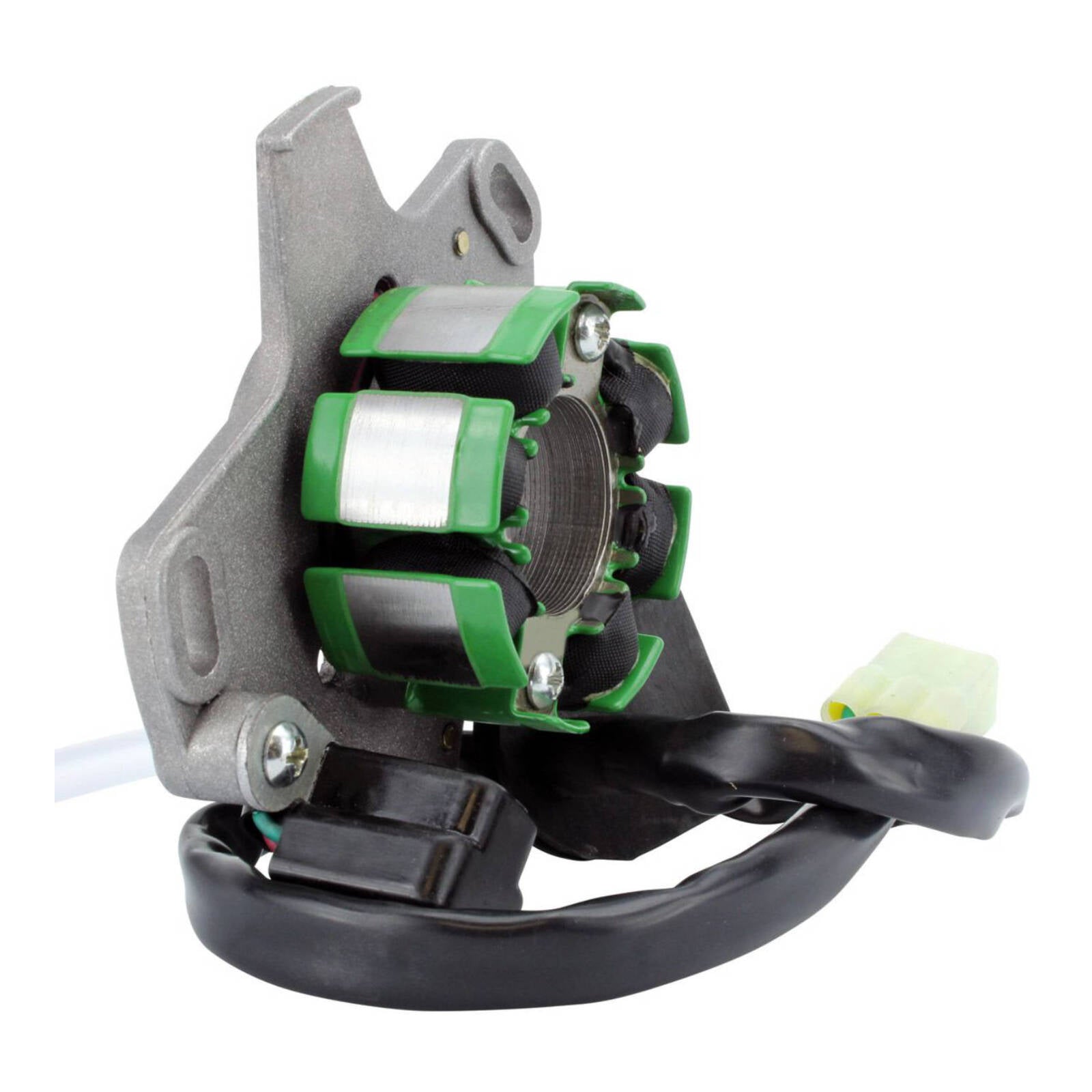

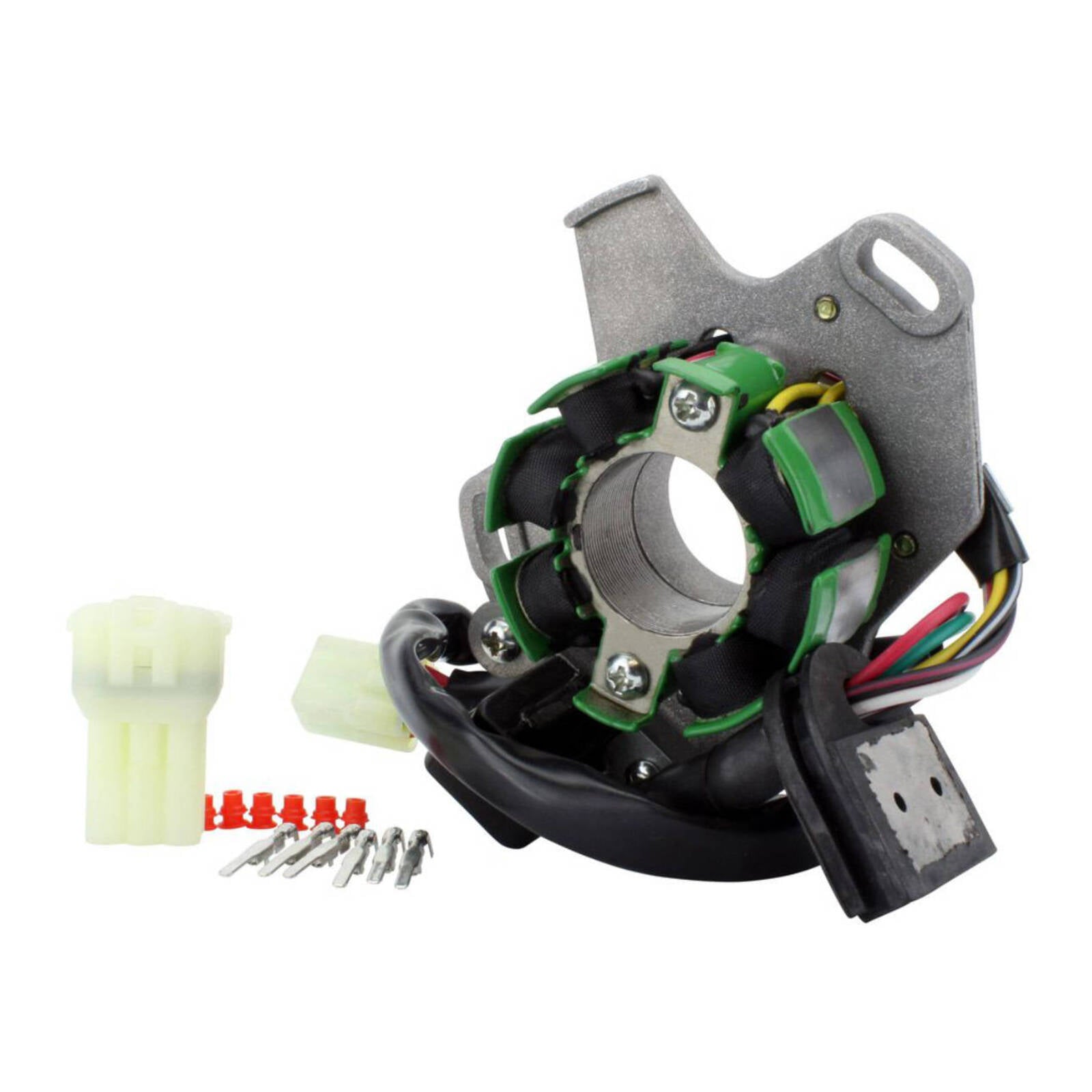

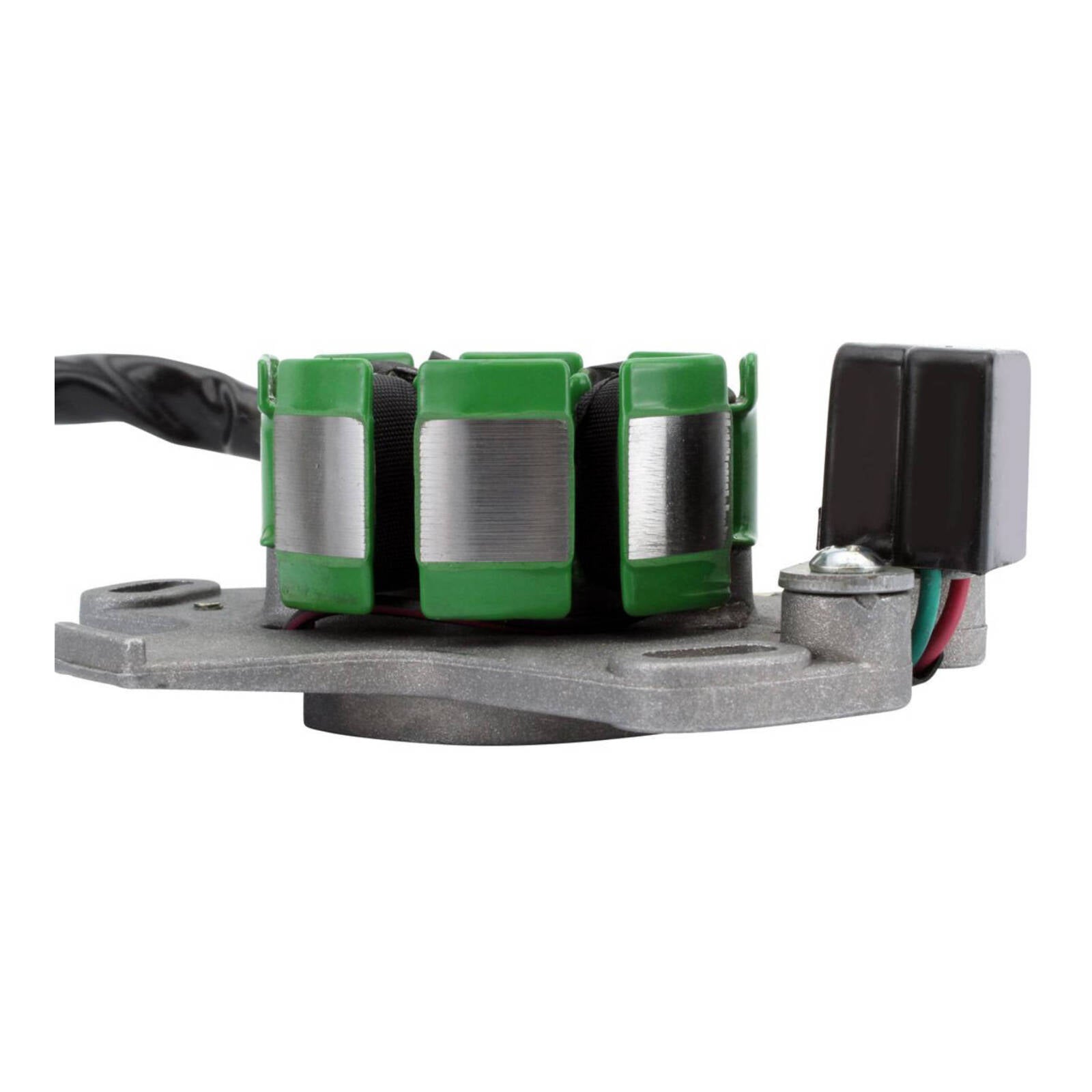

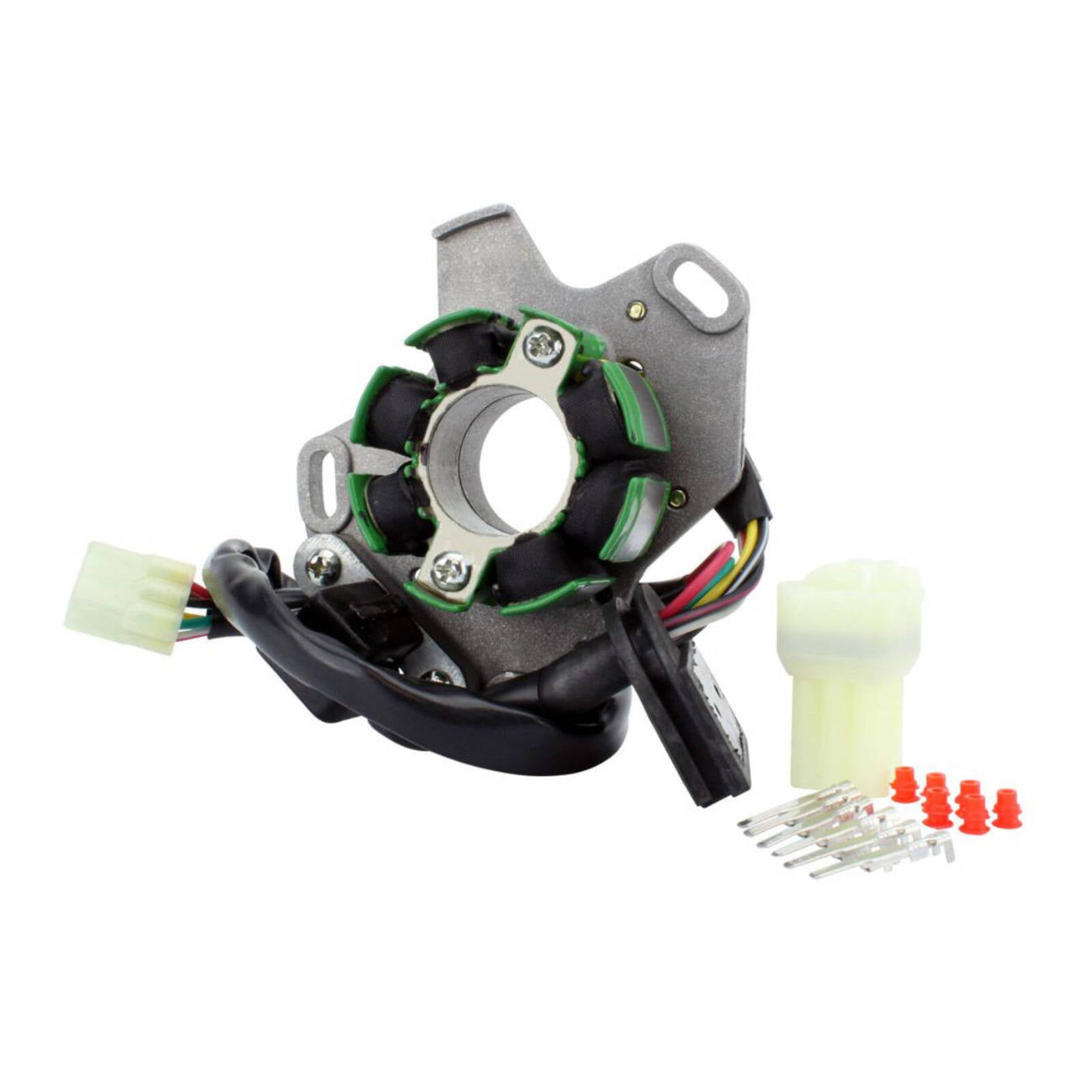

Stator Suzuki RM125 '05-'08
Plug-and-play aftermarket replacement stator from RM Stator.
Dimensions:
- Interior diameter: 28mm
- Exterior diameter: 58mm
- Thickness: 12mm
- Length of wires stator to grommet: 15mm
- Length of wires grommet to plug: 530mm
Other specifications:
- Number of wires: 6
- Number of plugs: 1
- Number of pins: 6
- Wire to wire resistance:
- Alternator: Yellow to Black/White = 0.4 ohms +-20%
- Pickup: Red to Green = 100 ohms +-20%
- Source: Black/Red to Red/White = 32ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Includes the opposite connector (main harness side) as these are often melted / corroded / defective and a major cause for repetitive electrical issues

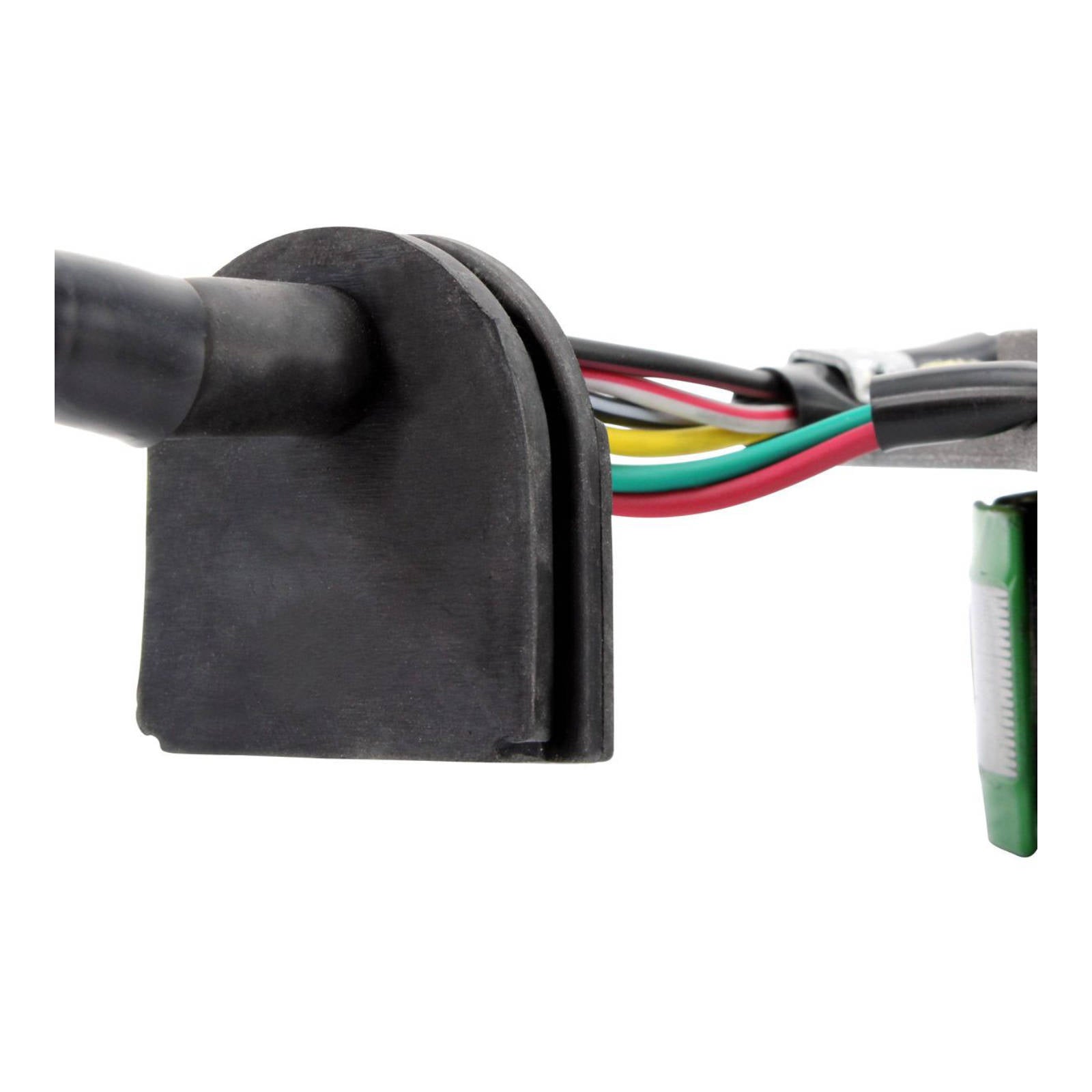

- Rubber grommet included

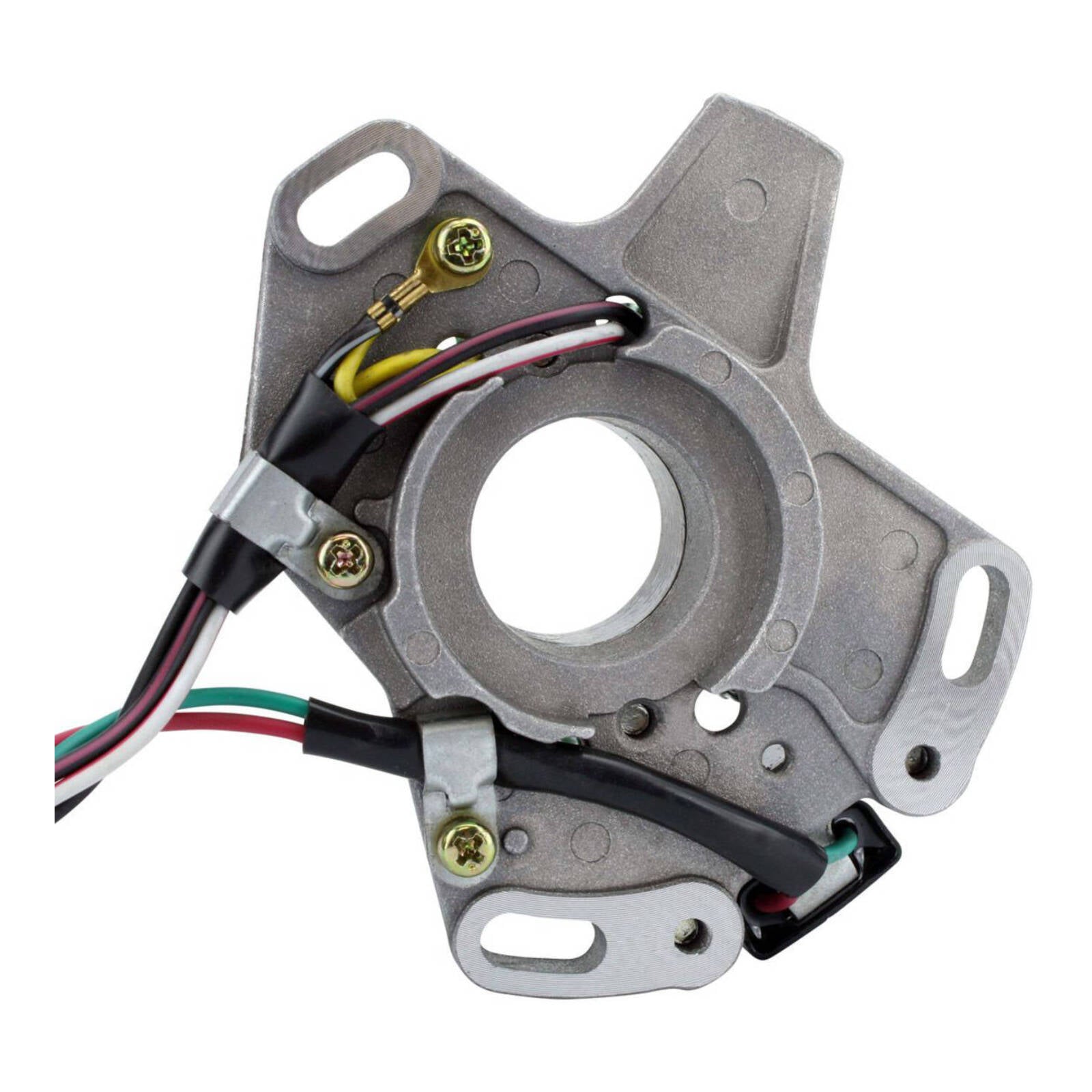

- Back Plate included
- All products shipped are tested
Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

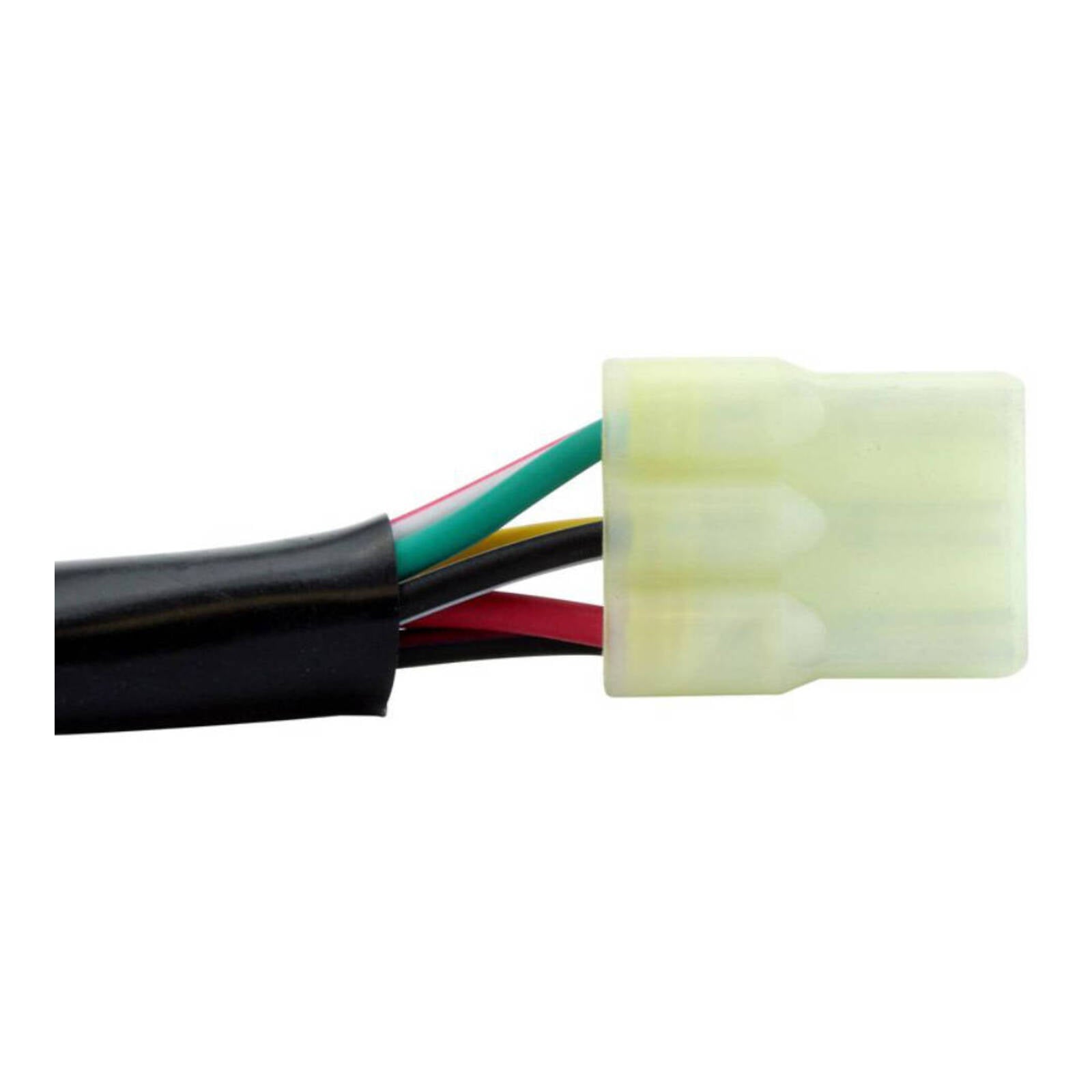

- Connector included
- Rubber grommet included
- All products shipped are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Dimensions:
- Interior diameter: 28 mm
- Exterior diameter: 58 mm
- Thickness: 12 mm
- Length of wires stator to grommet: 15 mm
- Length of wires grommet to plug: 530 mm
Other Specifications:
- Number of wires: 6
- Number of plugs: 1
- Number of pins: 6
Wire to Wire Resistance:
- Alternator: Yellow to Black/White = 0.4 ohms ±20%
- Pickup: Red to Green = 100 ohms ±20%
- Source: Black/Red to Red/White = 32 ohms ±20%
