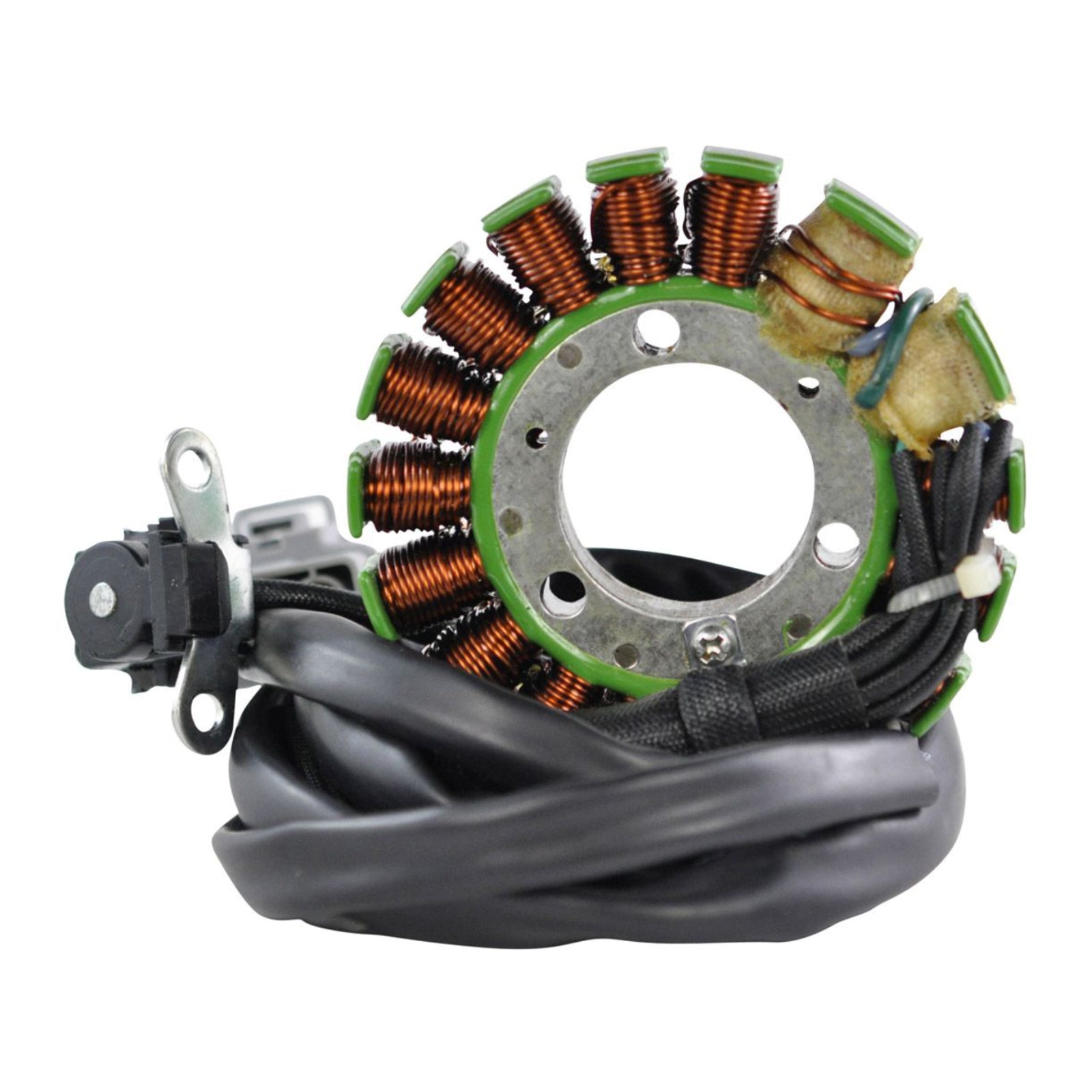

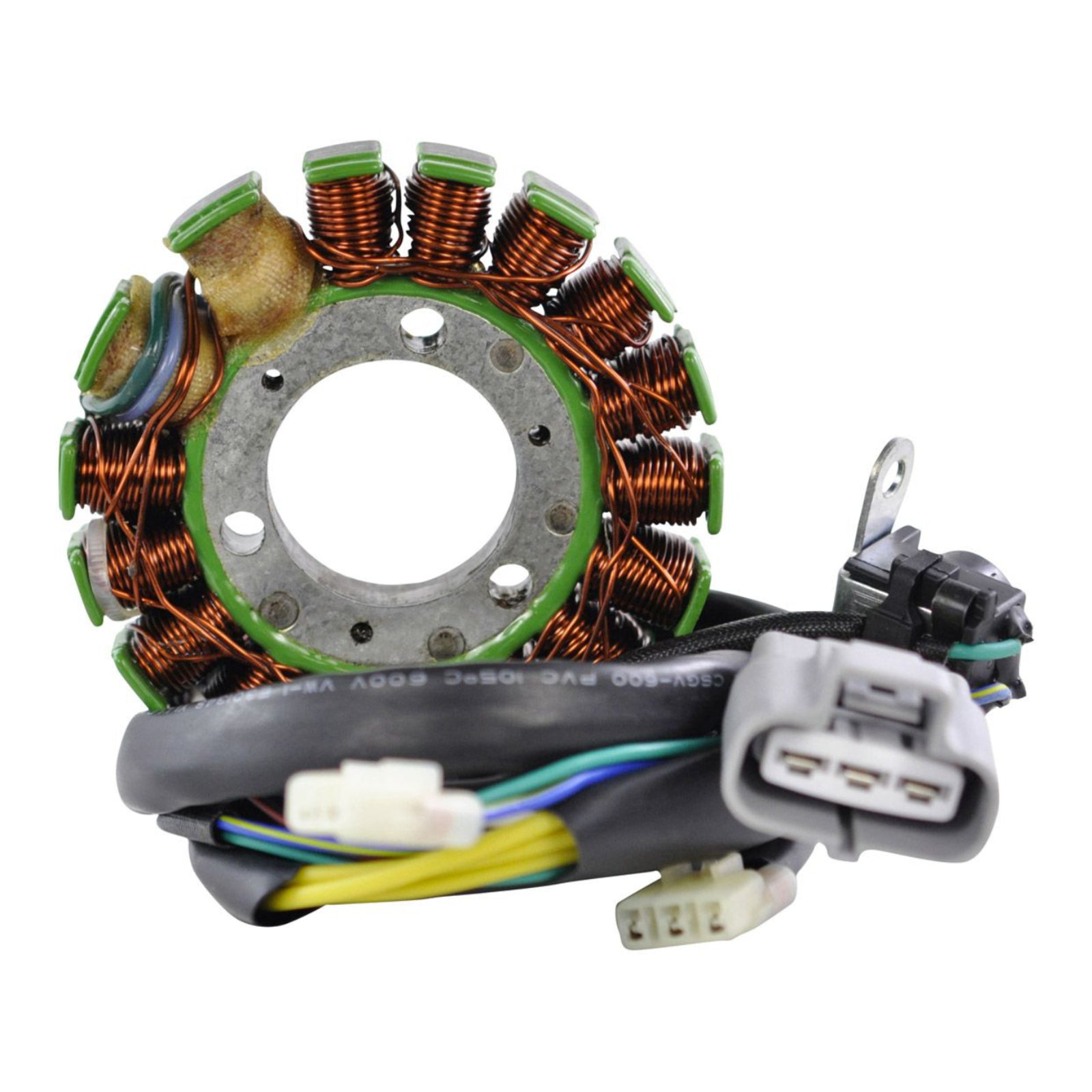

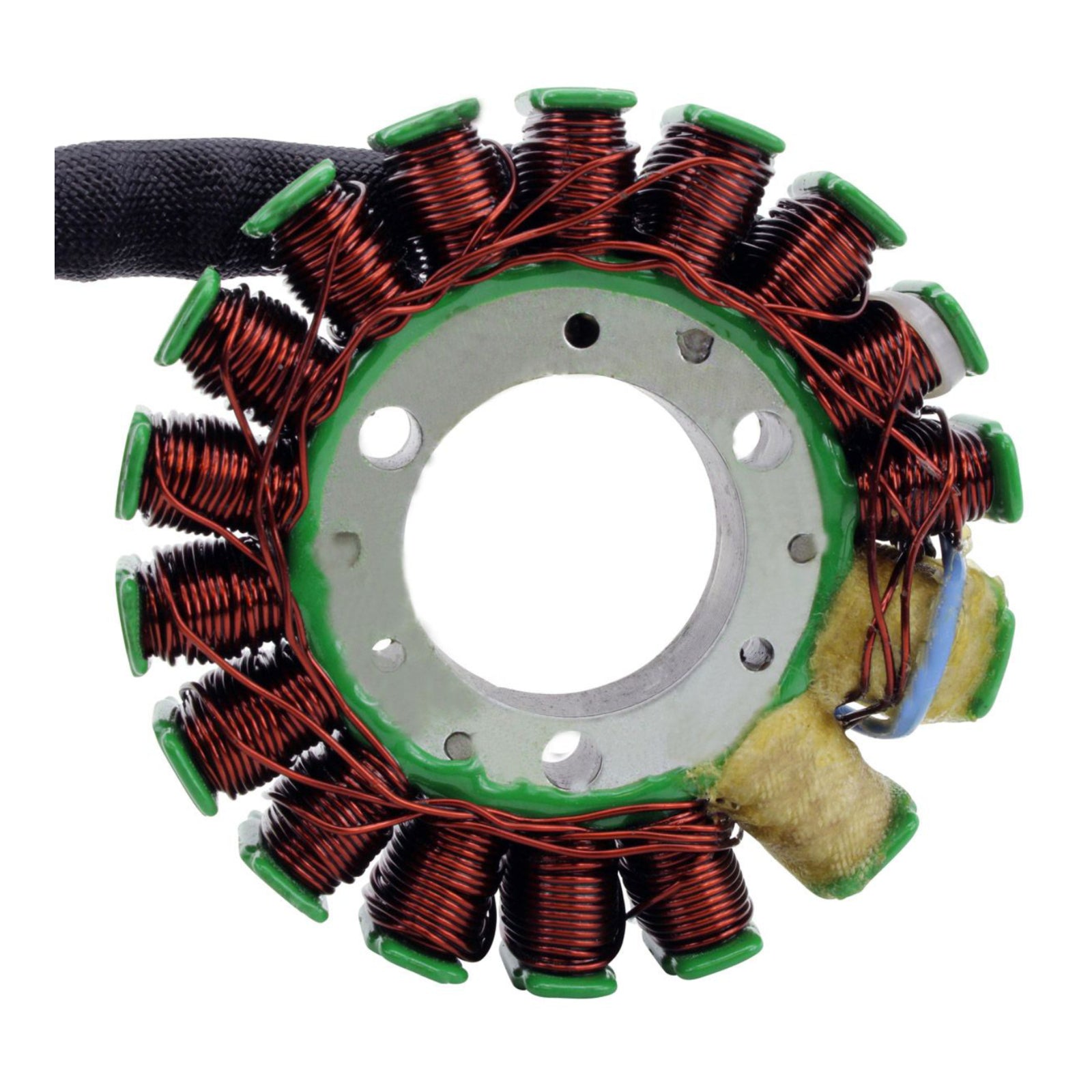

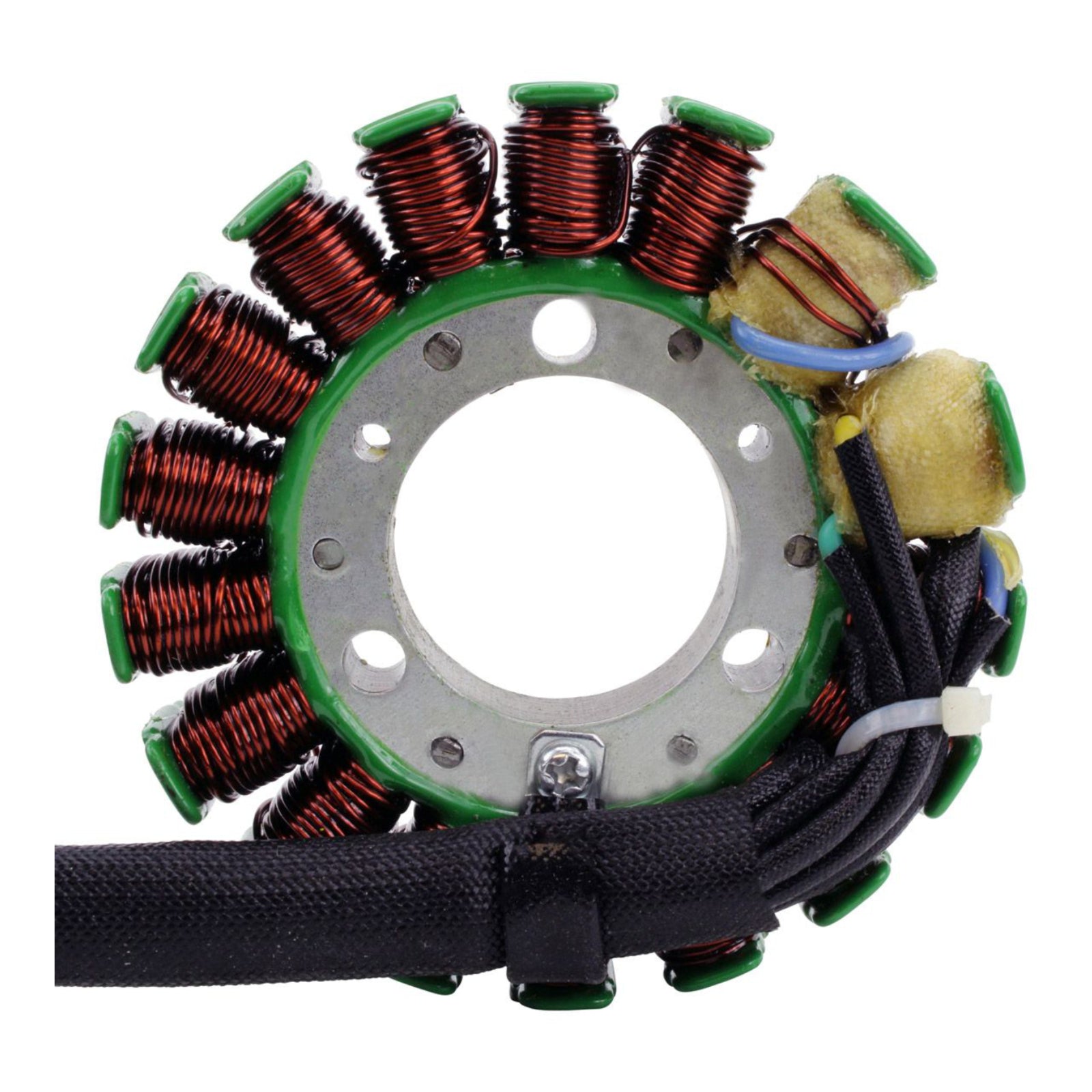

High Output Stator Honda TRX450R '04-'05 (RM01108)
Brand new high output stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.

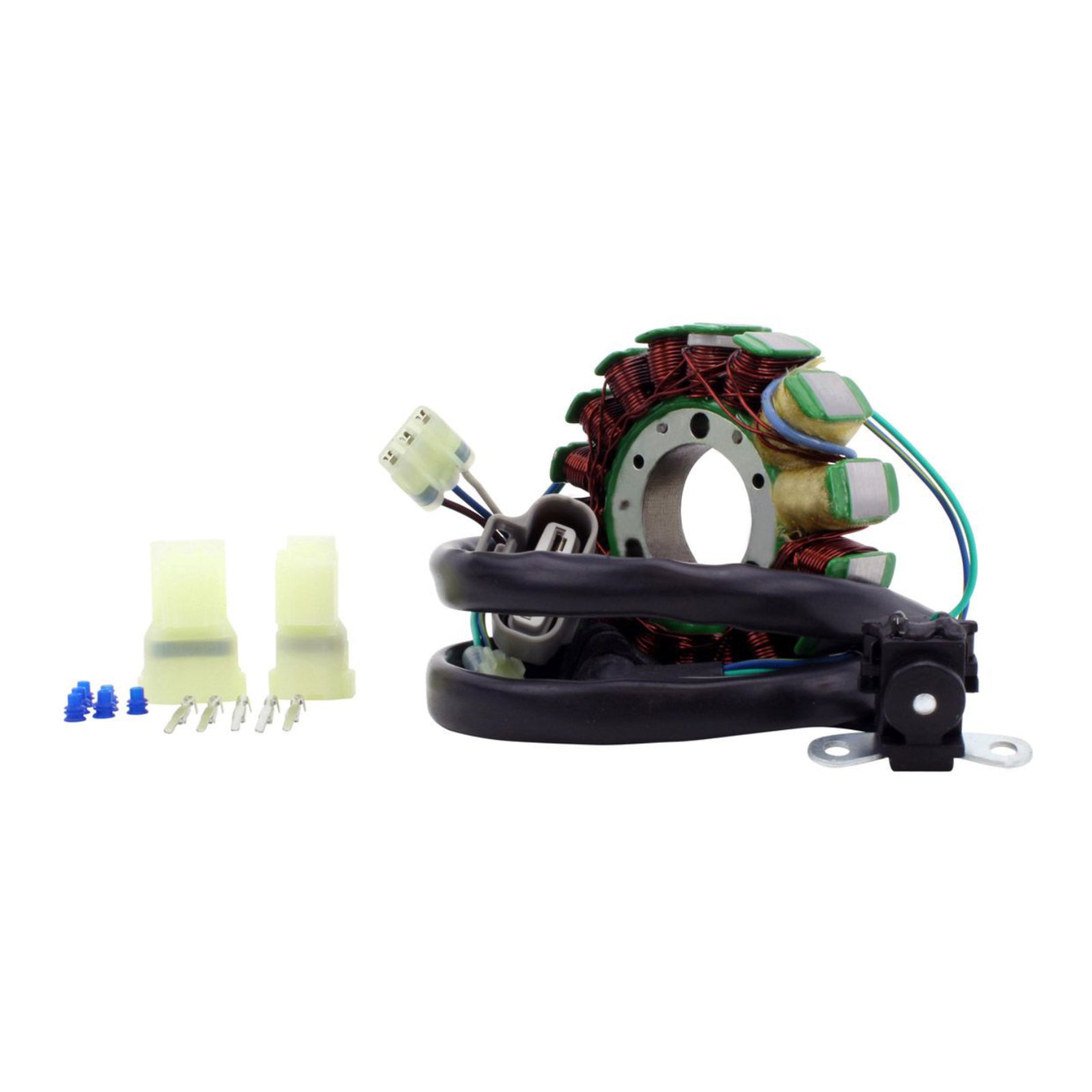

- Pick up pulsar coil included

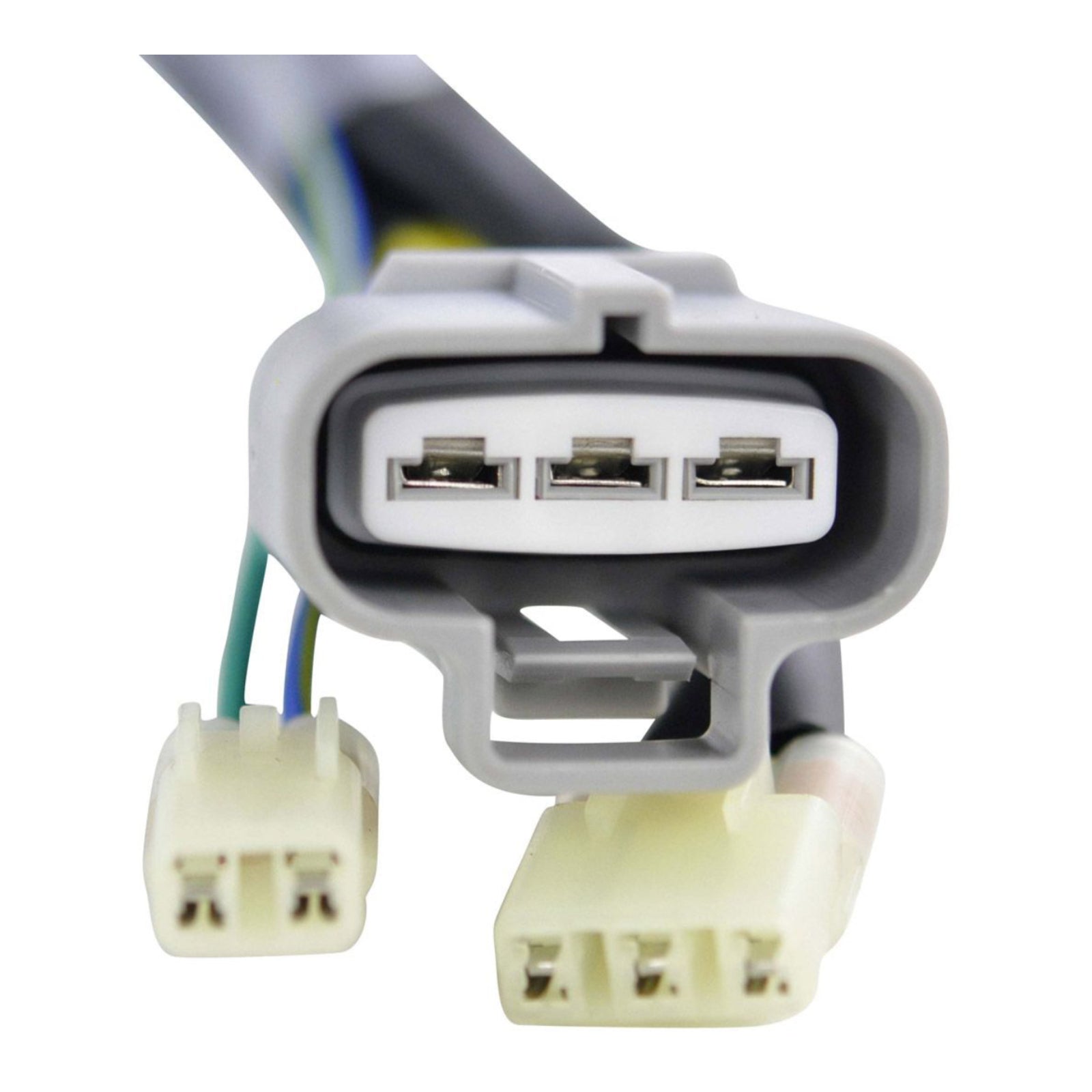

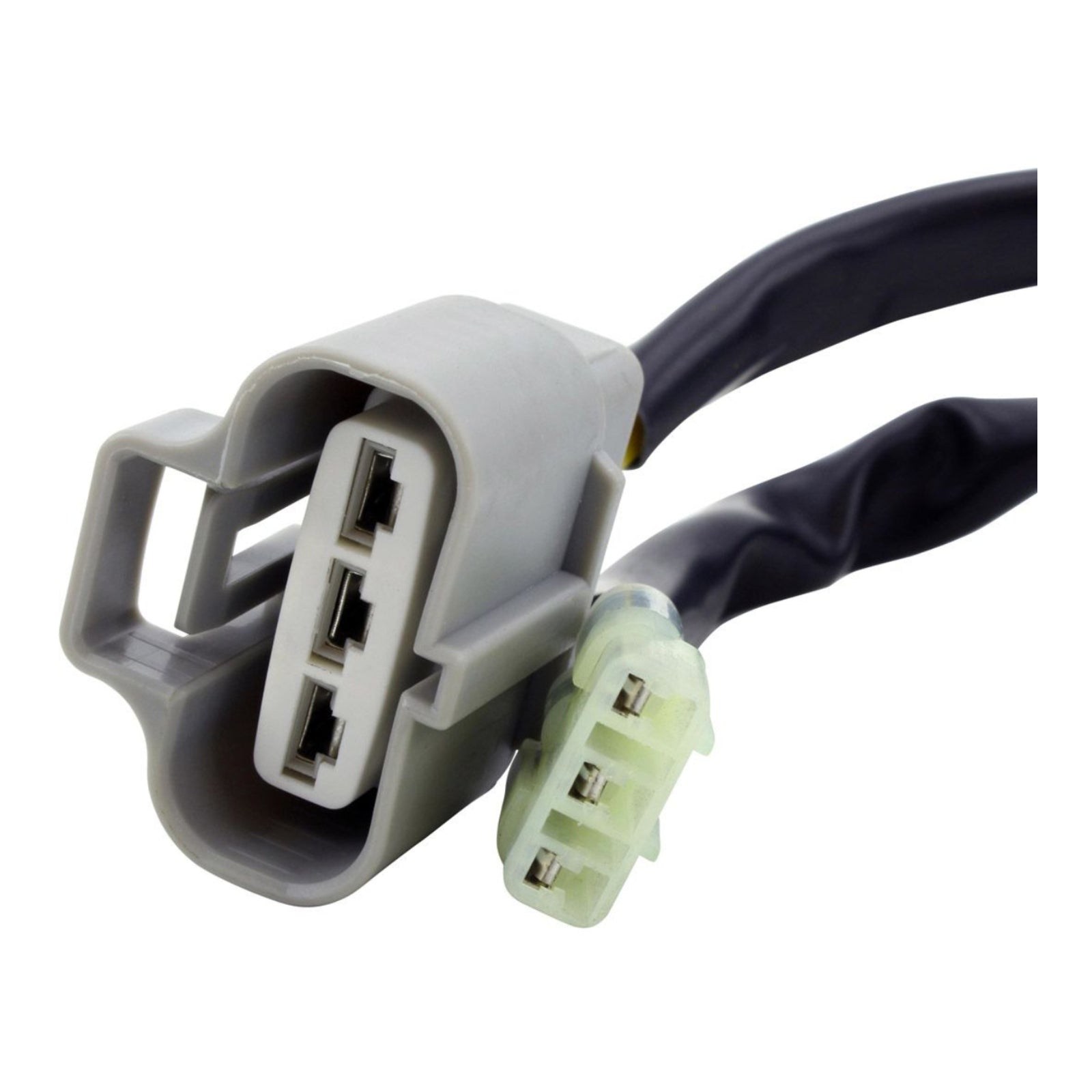

- Connector included
- Back Plate included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
- Interior diameter: 34 mm
- Exterior diameter: 92 mm
- Thickness: 15 mm
- Length of wires stator to grommet: 75 mm
- Length of wires grommet to plug:900 mm
- Length of pickup coil's wire to grommet: 80 mm
Other specifications:
- Number of wires: 8
- Number of plugs: 3
- Number of pins: 8
Wire to wire resistance:
- Alternator: Between each Yellow = 0.4 ohms +/-20%
- Alternator: Yellow to Ground = 0.L Pickup : Green to Blue = 250 ohms +/-20%
- Source: Black/Red to Blue = 36 ohms +/-20%
- Source 2: Blue to White = 7 ohms +/-20%
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
