Generator Stator Various Arctic Cat (RM01285)
Generator Stator Various Arctic Cat (RM01285)
Out of stock

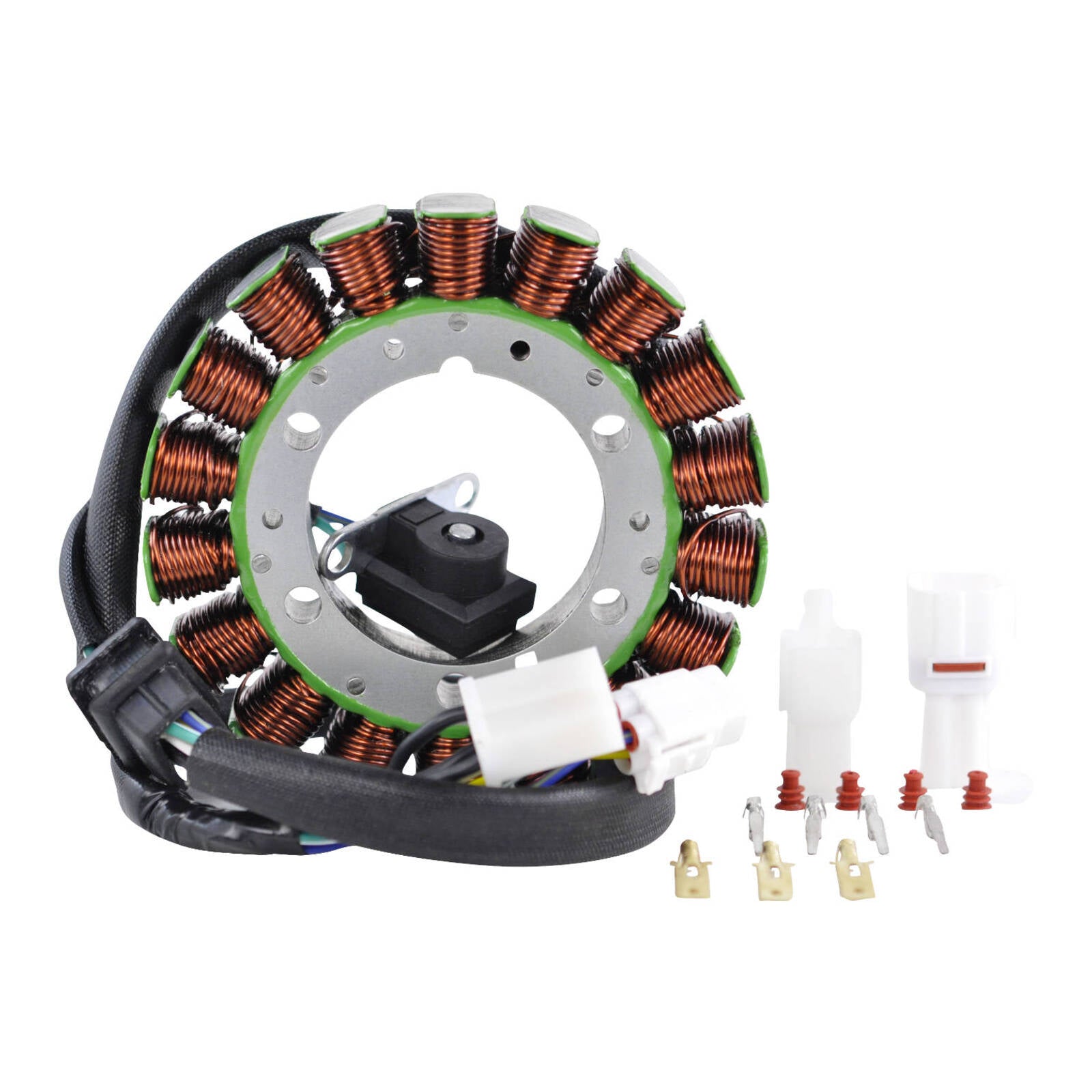

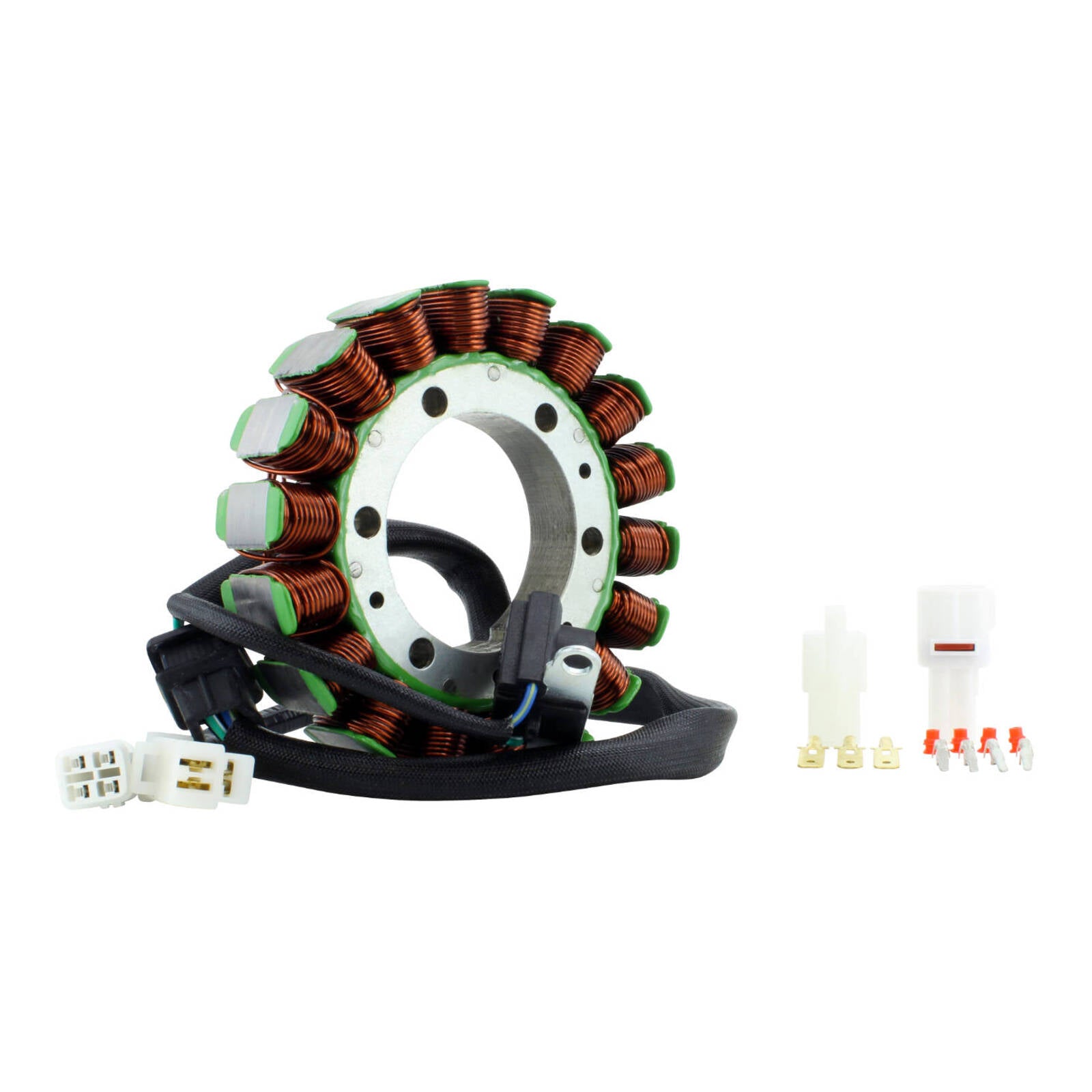

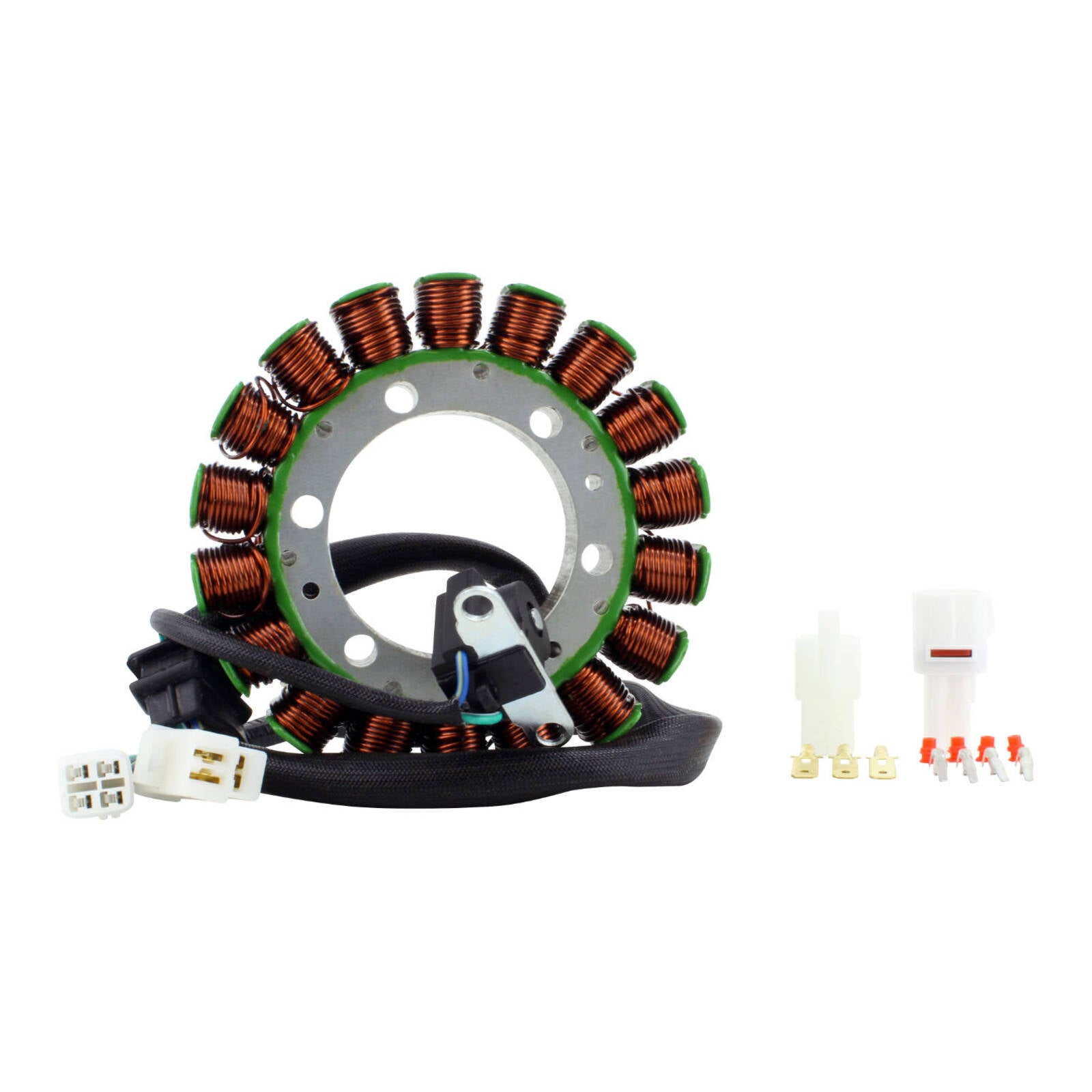

Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 114mm

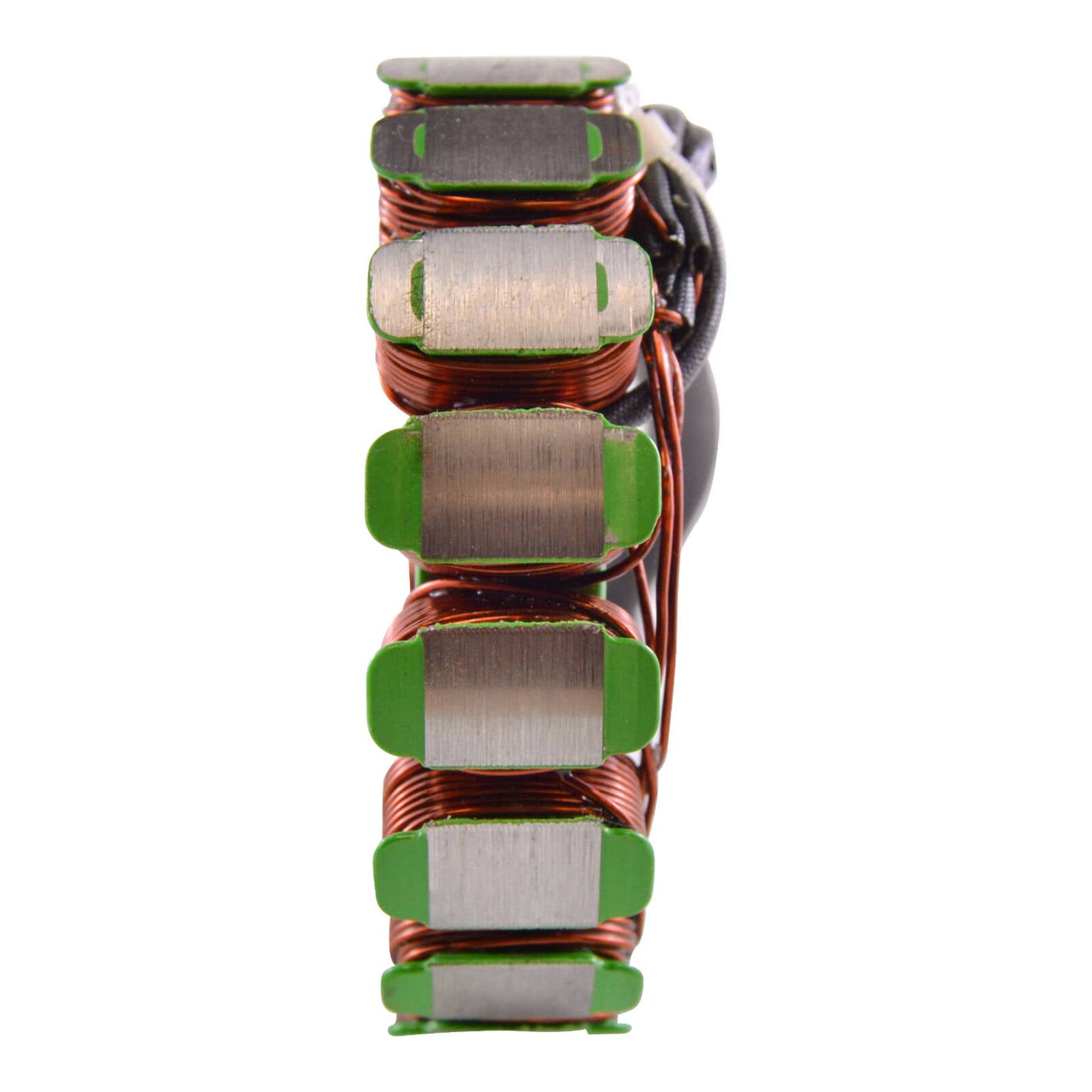

- Thickness: 18mm
- Length of wires stator to grommet: 140mm
- Length of wires grommet to plug: 320mm
- Length of pickup coil's wire to grommet: 95mm
Other specifications:

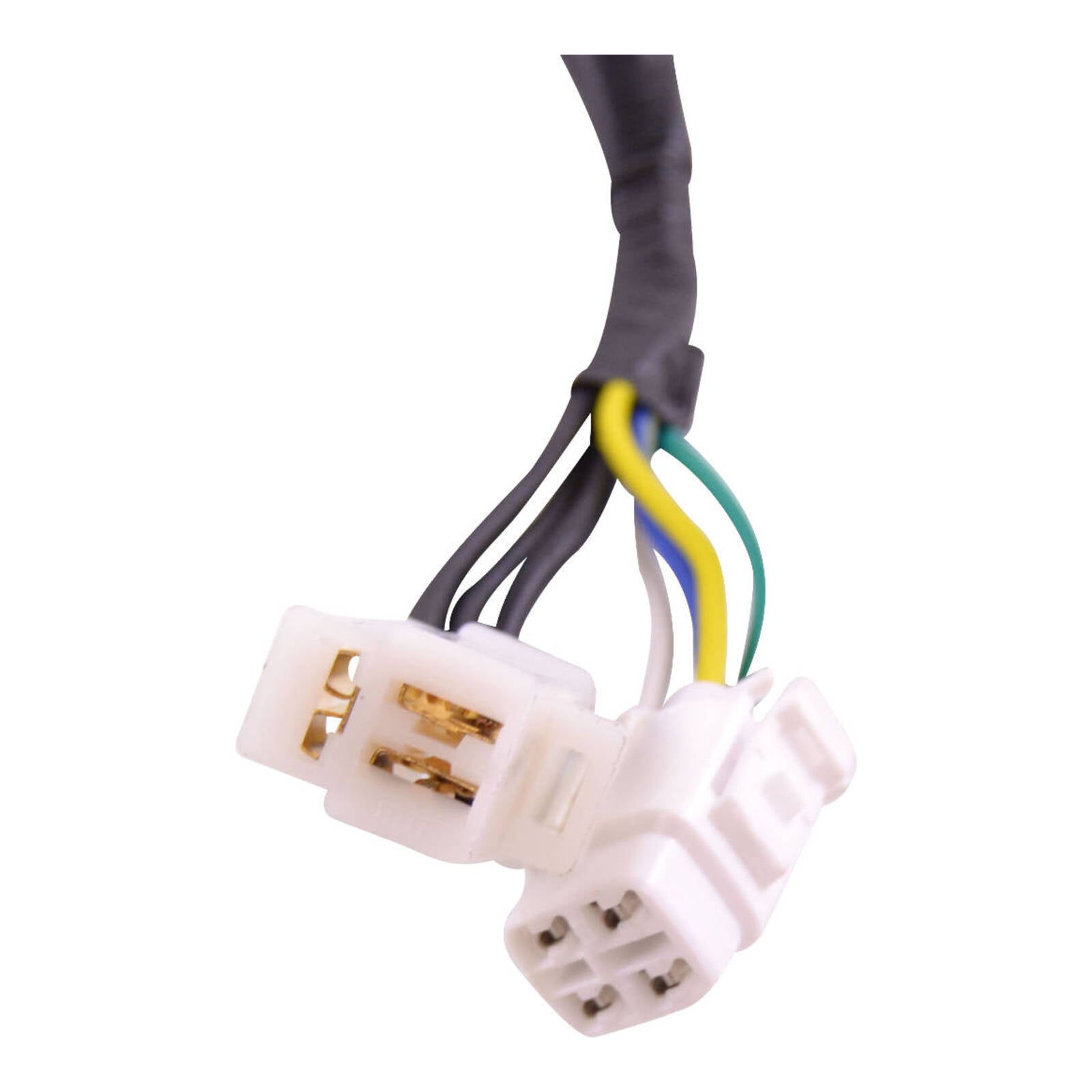

- Number of wires: 7
- Number of plugs: 2
- Number of pins: 7
- Wire to wire resistance:
- Alternator: Black between each Black = 0.4 ohms +-20%
- Pickup: Blue to Green = 185 ohms +/-20%
- Position Sensor: White to Yellow = 0.2ohms +/-20%
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

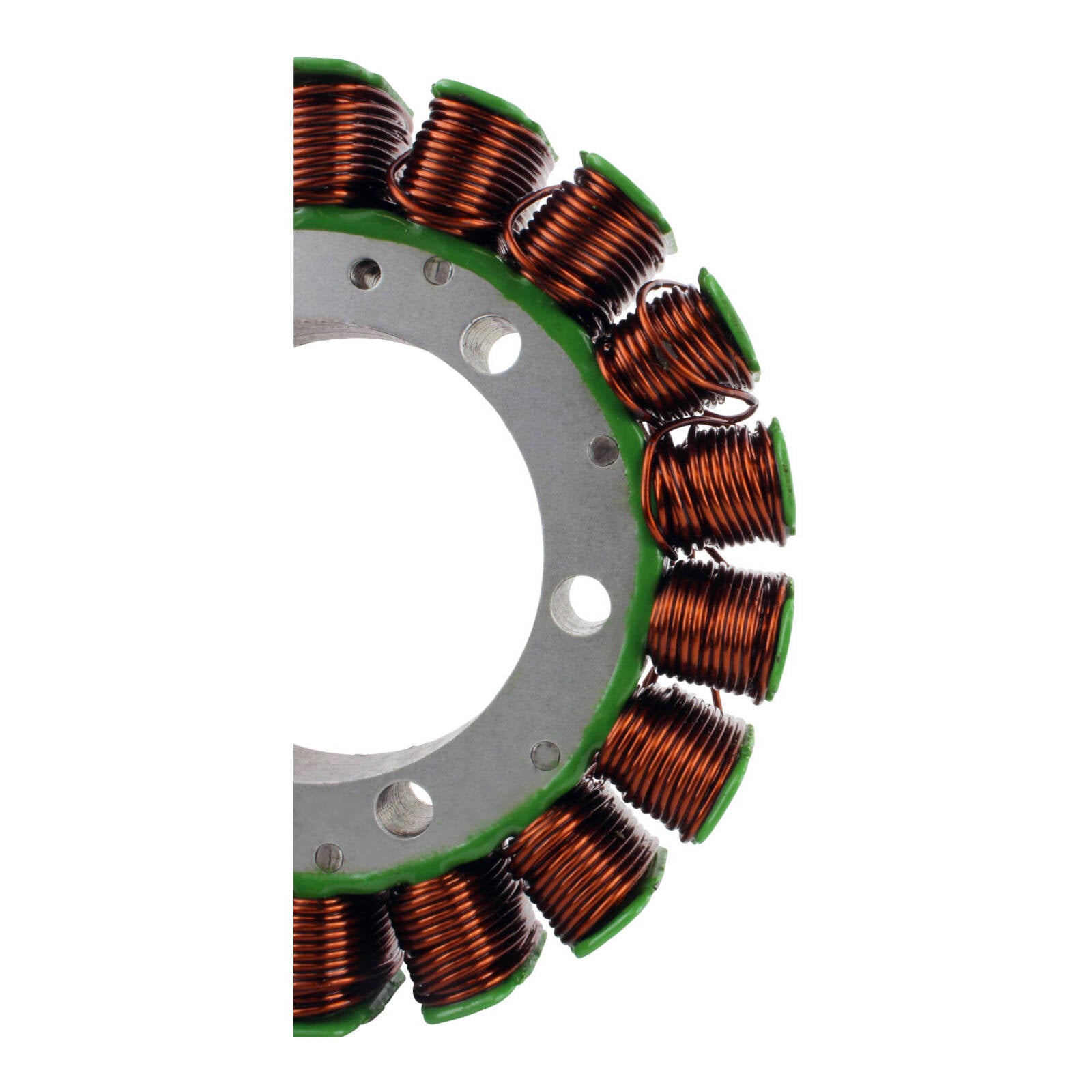

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

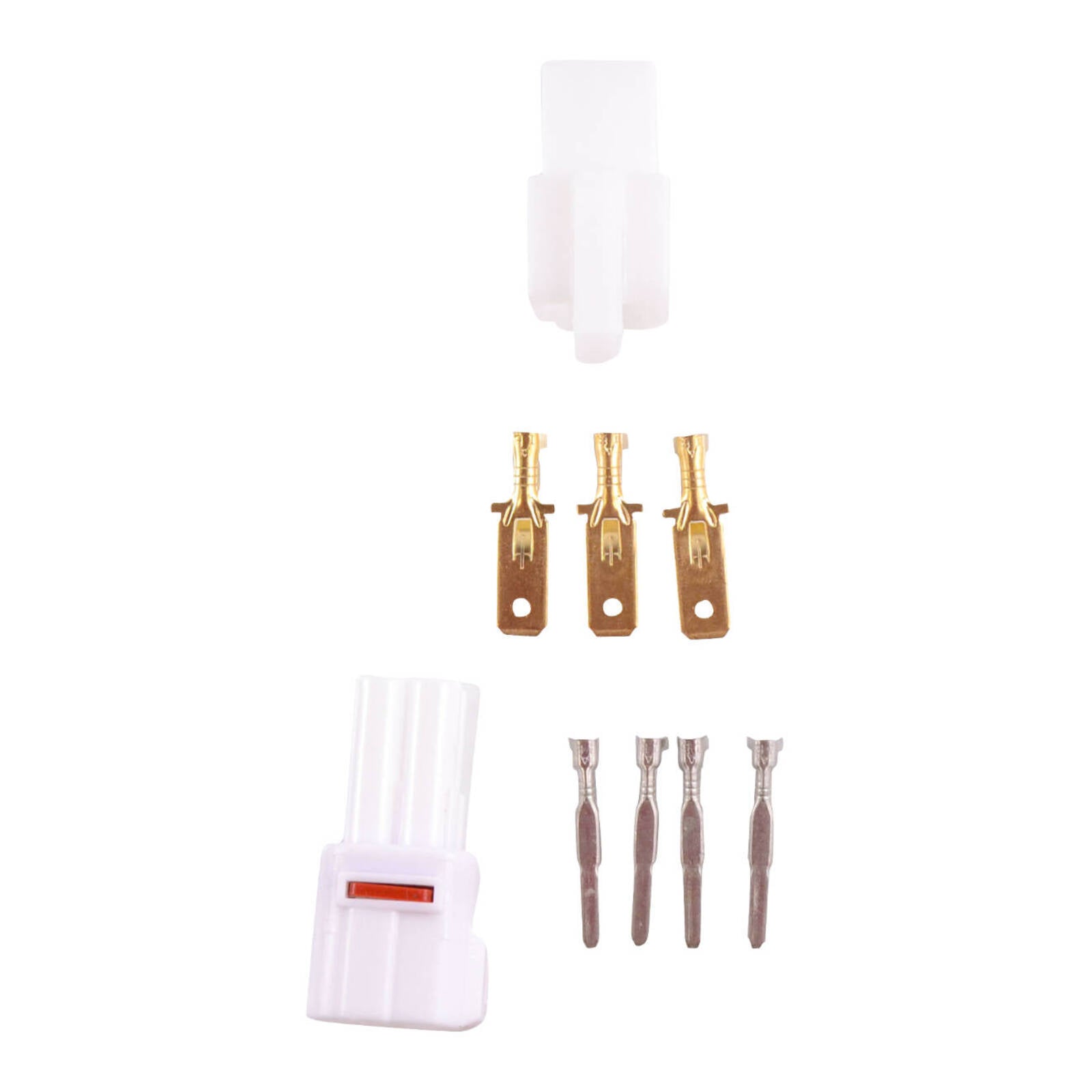

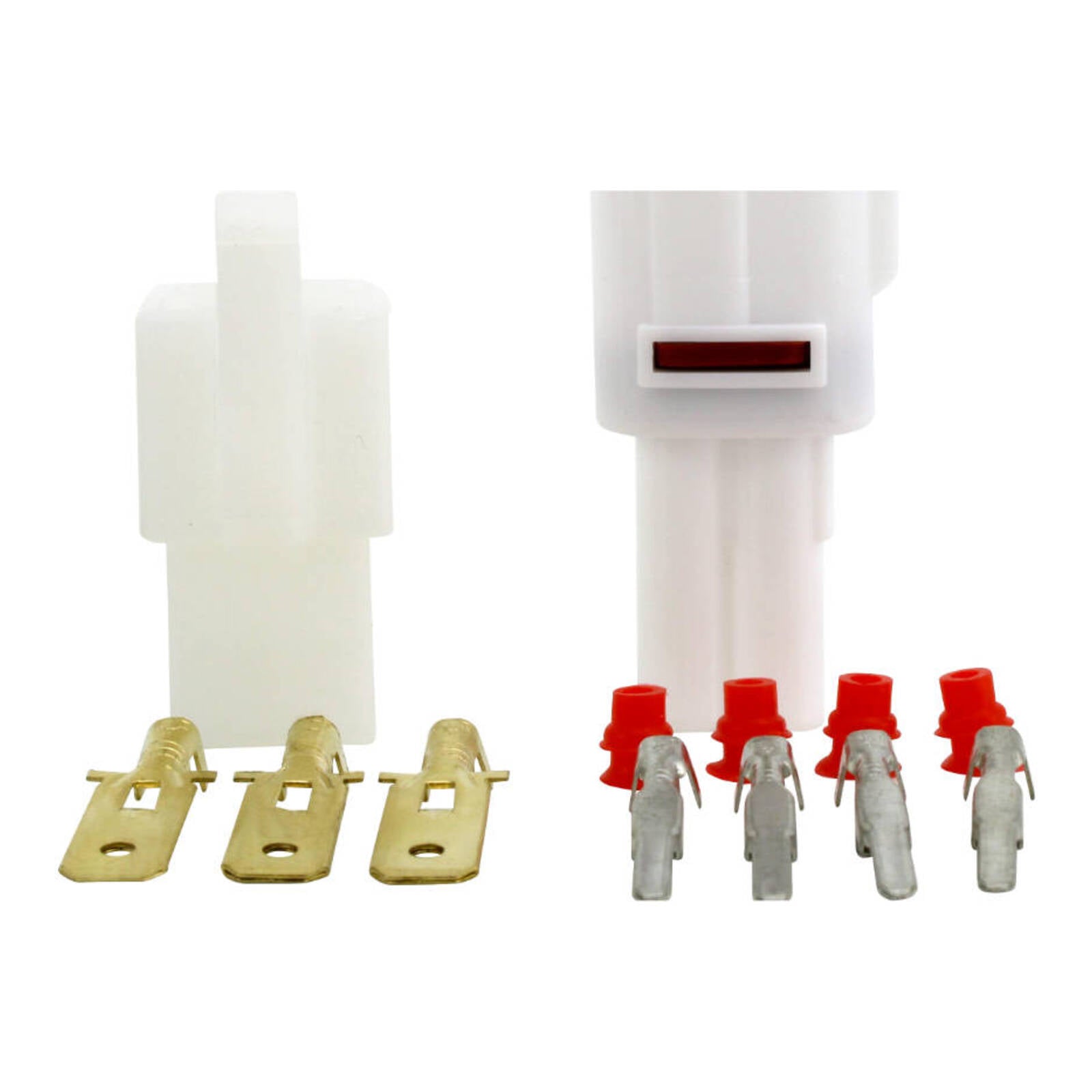

- Connector included
- Rubber grommet included
- All products shipped are tested
