Traxxas 93054-4 - Chevrolet Corvette Stingray: 4-Tec 3.0 1/10 RTR AWD Supercar
Traxxas 93054-4 - Chevrolet Corvette Stingray: 4-Tec 3.0 1/10 RTR AWD Supercar

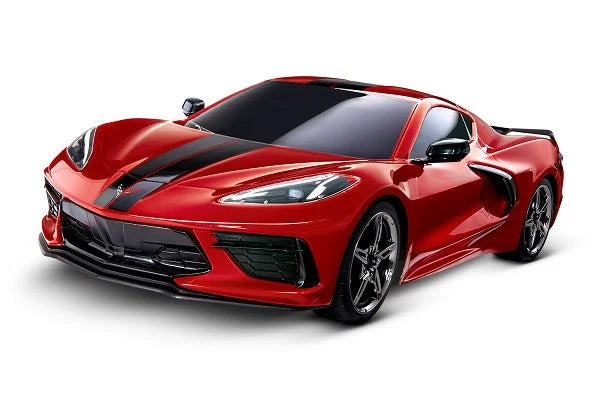

The name synonymous with American sports car excellence: Corvette. Traxxas delivers the spirit and excitement of the all-new mid-engine Corvette in exacting scale detail on the new, larger 4-Tec 3.0 chassis. The new Traxxas 4-Tec 3.0 puts supercar performance in your hands with a new long-wheelbase, wide-track design. The faceted, Corvette Stingray body and its massive side intakes are duplicated to the millimeter. The simulated LT2 V8 is visible beneath the rear hatch. Authentic black-chrome wheels fill the fenders. Beautiful to display- with Traxxas performance that demands you to drive
Batteries & Charger are not included, these are the compatible batteries and chargers:
Compatible Lipo Batteries:
- Traxxas 2842X 5000mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2843X - 5800mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2844R - 5200mAh 7.4v 2-cell 35C LiPo Battery
- Traxxas 2869X - 7600Mah 7.4V 2-Cell 25C Lipo Battery
Compatible Nimh Batteries:
- Traxxas 2923X - Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V)
- Traxxas 2940X - Battery, Series 3 Power Cell, 3300Mah (Nimh, 7-C Flat, 8.4V)
- Traxxas 2950X - Series 4 NiMH 7-Cell 4200mAh Flat w/iD Conn
- Traxxas 2960X - Series 5 NiMH 7-Cell 5000mAh Battery Flat w/iD Conn
Compatible Chargers:
- Traxxas 2970 - Ez-Peak Plus 4-Amp Nimh/Lipo Fast Charger With Id Auto
- Traxxas 2971 - EZ-Peak Live 100W NiMH/LiPo charger (2971A)
- Traxxas 2972 - Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification
- Traxxas 2973 EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/26A/200W)
- Traxxas 2975 - Charger, DC, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH)
- Traxxas 2981 - EZ-Peak Plus 4s Charger
Completer Packs:
- Traxxas 2983 - 8.4v 3000mah (long) Battery/Charger Completer Pack
- Traxxas 2992 - 2s Battery/Charger Completer Pack (Includes #2970 Id Charger (1), #2843X 5800Mah 7.4V 2-Cell 25C Lipo Battery (1))
NB: Some batteries may require a battery expansion kit to fit properly.
What’s In The Box
- Traxxas Corvette Stingray, Ready-To-Race Model with Titan 12T 550 Motor
- XL-5 Waterproof Electronic Speed Control (Installed)
- TQ 2.4GHz Radio System (Installed)
- Quick Start Guide
- High Quality Maintenance Tools
- Optional High Speed Pinion Gear
What You’ll Need (Sold Separately)
- Battery Pack: 7-Cell NiMH "flat pack" or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector
- Charger: Traxxas EZ-Peak Plus (model #2970) recommended
- 4 x AA Alkaline Batteries for the Transmitter
Specs:
| Length: | 19.4 inches (492mm) |
|---|---|
| Front Track: | 8.1 inches (204mm) |
| Rear Track: | 8.0 inches (202mm) |
| Total Width (mirrors): | 8.9 inches (227mm) |
| Ground Clearance: | 0.3 inches (9mm) |
| Weight: | 3.92lbs (1.78kg) with body (no battery) |
| Height (ride): | 5.1 inches (130mm) |
| Wheelbase: | 11.3 inches (288mm) |
| Shock Length: | Short (front and rear) |
| Tire Diameter: | 2.8 inches (73mm) |
| Tire Width (front): | 1.1 inches (28mm) |
| Tire Width (rear): | 1.3 inches (32mm) |
| Wheel Diameter: | 2.1 inches (54mm) |
| Speed Control: | XL-5™ Waterproof FWD/REV ESC with Low Voltage Detection (LVD) |
| Motor (electric): | Titan® 12T 550 (12-Turn) |
|---|---|
| Transmission: | Single Speed Direct Drive |
| Overall Drive Ratio: | 11.38 |
| Differential Type: | Sealed, Hardened Steel Bevel, Limited Slip |
| Gear Pitch: | 48 |
| Chassis Structure/Material: | Molded Tub / Nylon Composite |
| Brake Type: | Electronic |
| Drive System: | Shaft-Driven 4WD |
| Steering: | Dual-Bellcrank |
| Radio System: | TQ™ 2.4GHz Transmitter |
| Servo: | #2075 High Torque Waterproof |
| Top Speed: | 30+mph (with included optional pinion gear) |
| Skill Level: | 1 |
| Battery Tray: | 158mm long / 46mm wide / 23 or 26mm high |
Motor Specs:
| Type: | High-speed brushed motor |
|---|---|
| Weight: | 240g (8.47oz) |
| Can Length: | 3.07 inches (78mm) overall length, 2.24 inches (57mm) can length |
| Diameter: | 1.41 inches (36mm) |
| Shaft Size: | 3mm |
| Connector Type: | Bullet |
ESC Specs:
| **Properly geared *Patented | |
|---|---|
| Input Voltage: | 4-7 Cells (4.8 to 8.4 Volts DC) |
| Case Size: | 1.23in W x 2.18in D x 0.61in H |
| Weight: | 69.2g (2.44oz) |
| Motor Limit: | 15-turns** (540 Size) 12-turns** (550 Size) |
| On Resistance Forward: | 0.007 Ohms |
| On Resistance Reverse: | 0.014 Ohms |
| BEC Voltage: | 6.0 VDC |
| BEC Current: | 1A |
| Power Wire: | 14 Gauge / 5 inches |
| Input Harness Wire: | 26 Gauge / 9 inches |
| PWM Frequency: | 1600 Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal shutdown |
| Profile Selection: | Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV |
| Single-button setup: | Yes, Traxxas EZ-Set® |
Features:
-
Officially Licensed Corvette Stingray Body
- Clipless body eliminates body post holes
- Highly-detailed replica engine bay
- Injection molded details
-
- Front grilles, rear diffuser, side intakes, side mirrors, and spoiler
- LED-Ready front and rear lenses
- Replica black chrome wheels with lug nut detail
- Replica brake discs with red calipers
-
Clipless Body Mounts
- Easy removal of the body
- Front bumper/splitter incorporates the front body mount
- Rear window assembly disguises the rear body mount
-
High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
-
Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage
- Click here for more info
-
TQ™ 2.4GHz Radio System
- Traxxas #6519 3-channel micro receiver
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
-
Motor
- Powerful Titan™ 12T 550 modified motor with internal cooling fan
- Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
- 30+mph with included optional pinion gear
- Molded wire retainer keeps motor wires secure
-
Steering
- High-torque waterproof Traxxas #2075 steering servo
- Precise servo saver integrated into servo horn
- High steering angle option
-

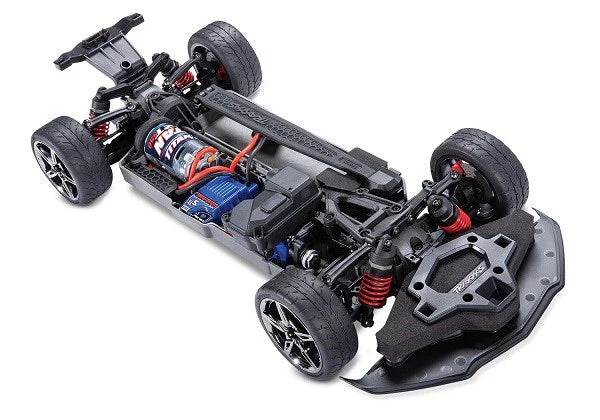

Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags
- Angled front bumper improves approach angle
-
Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
-
High Performance Suspension
- Captured links won’t pop off
- Geometry tuned for precise handling
- Dual rear camber link mounts
- Adjustable droop
-
Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
-
Efficient Direct All-Wheel Drive
- Full-time shaft driven 4-wheel drive
- Steel center driveshaft with center bearing support
- Direct drive
- Sealed, silicone-filled differential
- Brushless ready for easy Velineon brushless power upgrade
-
Wheels and Tires
- Replica Corvette Stingray black chrome wheels
- High-performance tires with long-wearing compound
- Wider rear tires for a more aggressive stance
- Replica brake discs incorporate standard 12mm wheel hexes
- Brake calipers can be mounted in forward or trailing edge positions
-
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Red powder coated shock springs feature a responsive spring rate
- Rubber-Sealed Ball Bearings
- Requires Traxxas 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery and Charger (Sold Separately)
- Backed by Unparalleled Traxxas Support and Parts Availability
Model 93054-4 Information
Fully-assembled, Ready-To-Race, with TQ 2.4GHz Radio System, XL-5 Electronic Speed Control, Titan 12T 550 motor, and ProGraphix painted replica body.
